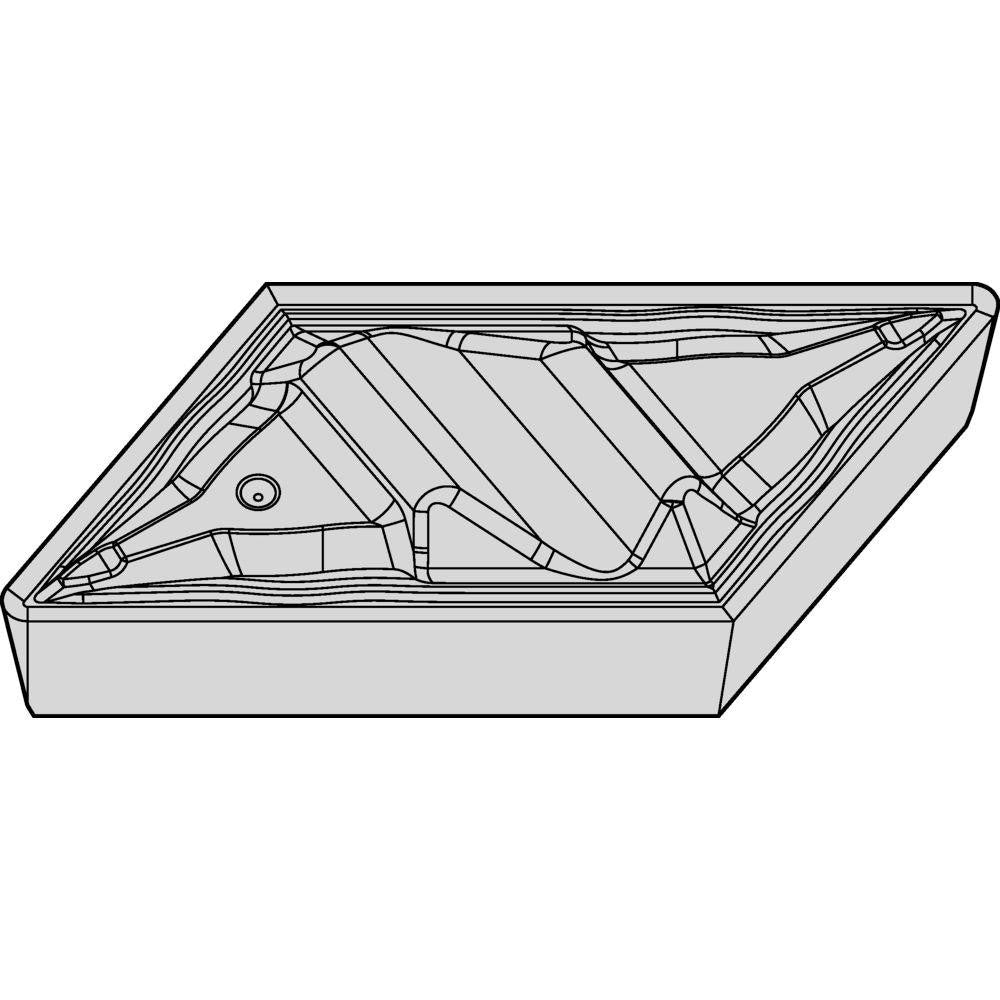

Profiling Insert: NPGR52LFP KCP25C
Item #: 84454800
Brand: Kennametal
Model #: 7088173
Product Specifications
| Insert Style | KCGR |
| Insert Size Code | 110308 |
| Insert Material | Carbide |
| Width (Inch) | 1/4 |
| Manufacturer Grade | KCP25C |
| Thickness (Inch) | 1/8 |
| Insert Height (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.1800 |
| Insert Height (mm) | 3.18 |
| Maximum Depth of Cut (Decimal Inch) | 0.1250 |
| Maximum Depth of Cut (mm) | 3.18 |
| Insert Holding Method | Clamp |
| Insert Hand | Left Hand |
| Corner Radius (Decimal Inch) | 0.0312 |
| Corner Radius (mm) | 0.80 |
| Included Angle | 55.00 |
| Relief Angle | 8.000 |
| Chipbreaker | FP |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (mm) | 6.35 |
| Series | KCGR |
| Coating Process | CVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4580 |
| Insert Length (mm) | 11.63 |
| Number Of Cutting Edges | 2 |
| Iso Code | KCGR110308L08FP |
| Rake Angle | 17.000 |
| Shape | Parallelogram |
| Coating/Finish | MT-TiCN |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Width (mm - 2 Decimals) | 6.35 |
| UNSPSC Code | 23242105 |
| Country of Origin | UNITED STATES |
