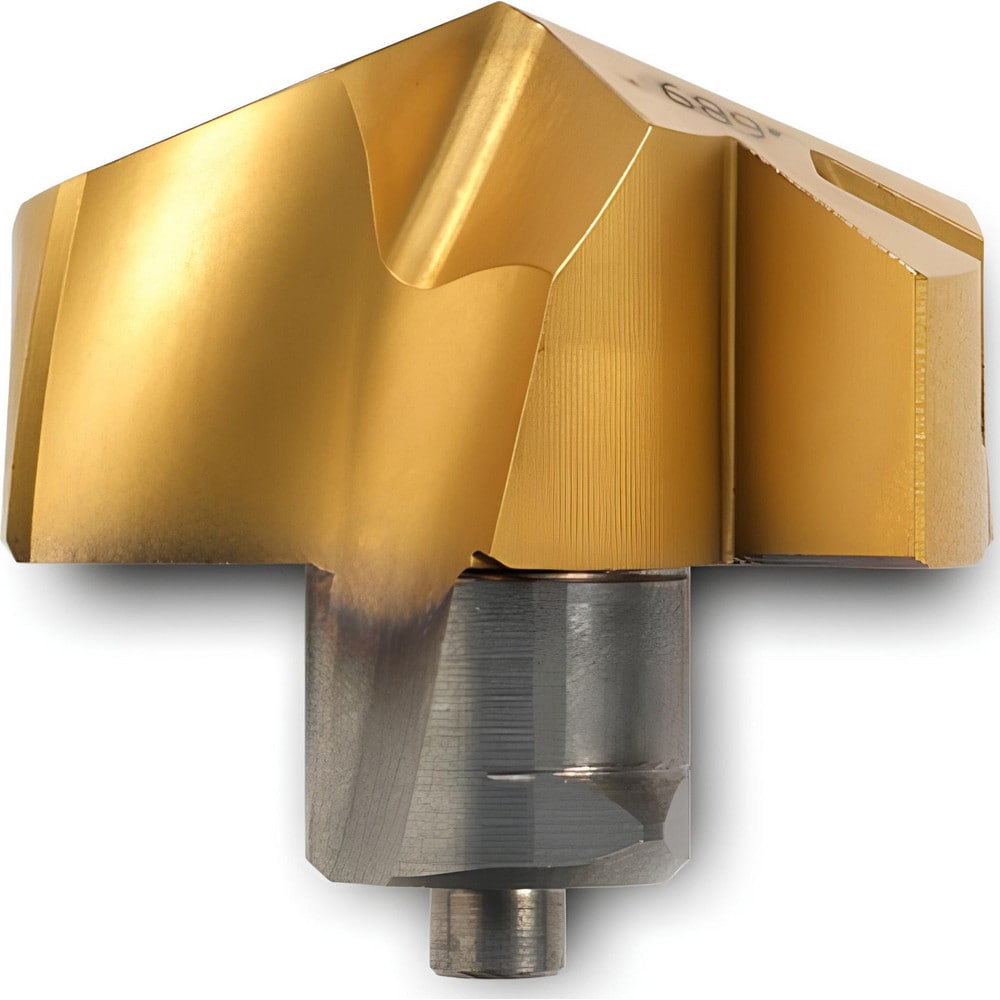

Brand: Ingersoll Cutting Tools / Part #: 5101279
Item #: 53672242
Brand: Ingersoll Cutting Tools
Model #: 5101279
Product Specifications
| Maximum Drill Diameter (mm) | 23.80 |
| Point Angle | 140.00 |
| Diameter (mm) | 23.8000 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IN2505 |
| Material Grade | Micrograin |
| Cutting Direction | Right Hand |
| Series | TPA |
| Coating Process | PVD |
| Insert Geometry | P |
| Insert Seat Size | 23 |
| Functional Length (Decimal Inch) | 0.3830 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M |
| Height (Decimal Inch) | 0.525000 |
| Cutting Diameter (mm) | 23.80 |
| Drill Point Angle | 140 |
| Insert Holding Method | Twist |
| ISO Number | TPA2380R01 |
| Coolant Through | Yes |
| Overall Length/Projection (mm) | 0.53 |
| Minimum Cutting Diameter (mm) | 23.80 |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
