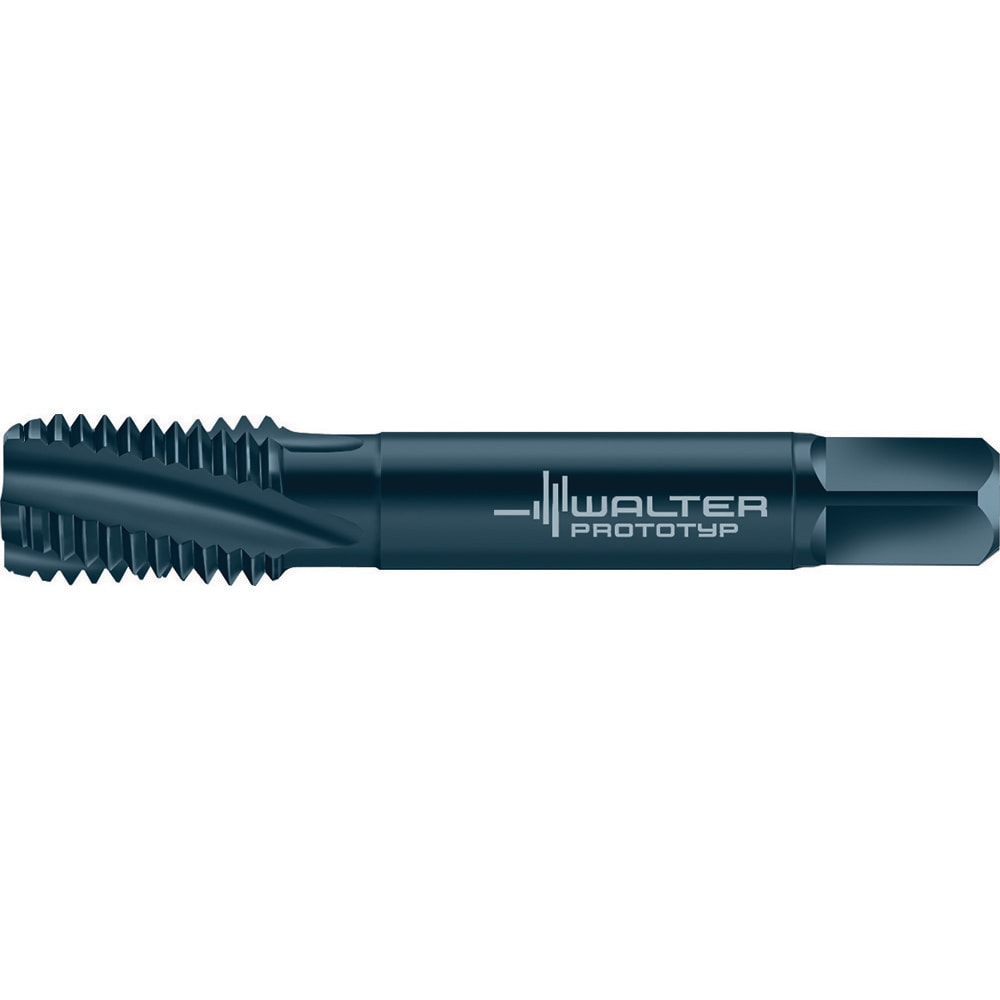

Spiral Flute Tap: 3/4-10, UNC, 4 Flute, Semi-Bottoming Chamfer, 3B Class of Fit, High-Speed Steel-E, Steam Oxide Finish
Item #: 53432035
Brand: Walter-Prototyp
Model #: 8046371
Product Specifications
| Thread Size (Inch) | 3/4-10 |
| Thread Standard | UNC |
| Chamfer | Semi-Bottoming |
| Material | High-Speed Steel-E |
| Thread Limit | H9 |
| Class Of Fit | 3B |
| Coating/Finish | Steam Oxide |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 4 |
| Flute Direction | Right Hand |
| Helix Angle | 15.00 |
| Oversize | No |
| Threads per Inch | 10 |
| Thread Length (Decimal Inch) | 1.1811 |
| Thread Length (mm) | 30.00 |
| Overall Length (Decimal Inch) | 4.2520 |
| Overall Length (mm) | 108.0000 |
| Application | Threading |
| Shank Diameter (Decimal Inch) | 0.5900 |
| Shank Diameter (mm) | 14.9800 |
| Tapping Depth (Decimal Inch) | 1.1811 |
| Tapping Depth (mm) | 30.00 |
| Square Length (mm) | 17.50 |
| Square Length (Decimal Inch) | 0.6890 |
| Square Size (Decimal Inch) | 0.4420 |
| Square Size (mm) | 11.22 |
| Flute Style | Spiral |
| Series | A22456S |
| UNSPSC Code | 23241600 |
