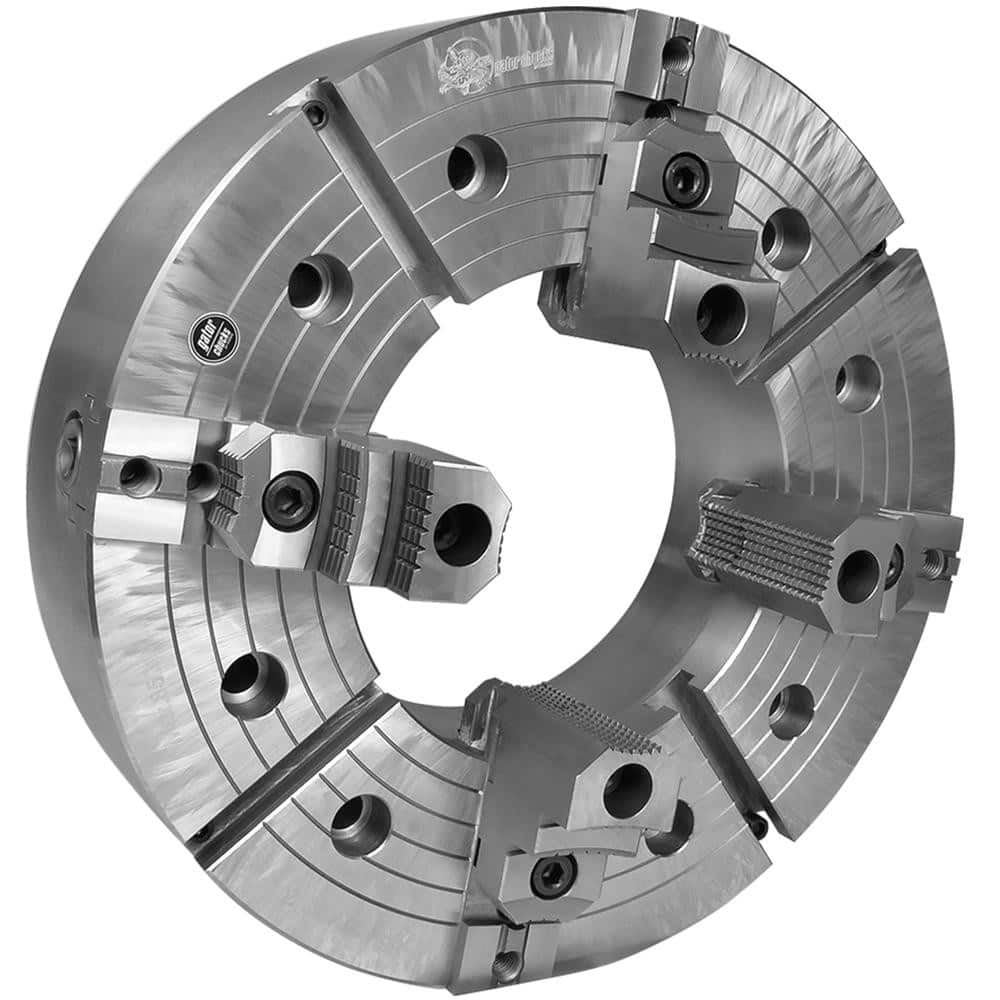

Independent Manual Lathe Chuck: 4-Jaw, 20″ Dia Two-Piece Jaws, Direct Mount, 1,000 Max RPM
Item #: 32305385
Brand: Gator Lathe Chucks
Model #: 1-317-2011
Product Specifications
| Chuck Type | Independent |
| Material | Forged Steel |
| Jaw Type | Two-Piece |
| Adjustable | No |
| Through-Hole Diameter (Inch) | 6-1/2 |
| Through-Hole Diameter (Decimal Inch) | 6.5000 |
| Chuck Diameter (Decimal Inch) | 20.0000 |
| Chuck Diameter (Inch) | 20 |
| Minimum Jaw Capacity (Inch) | 1.7700 |
| Minimum Jaw Capacity (mm) | 1.77 |
| Maximum Jaw Capacity (mm) | 19.68 |
| Maximum Jaw Capacity (Inch) | 19.6800 |
| Jaw Height (Decimal Inch) | 2.9810 |
| Maximum Rpm | 1000 |
| Mount Type | Direct |
| TIR Repeatability (Decimal Inch) | 0.0040 |
| Number Of Jaws | 4 |
| Contents | Chuck Mounting Bolts; (1) Set of HD Master & Hard Top Reversible Jaws; Eye Bolts; Chuck Wrench; Hex Keys |
