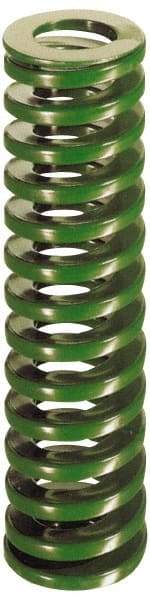

Dayton Lamina - 2" Hole Diam, 1" Rod Diam, 7" Free Length, Green Die Spring - 27.8 Lb Max Deflection, 2.8" Max Deflection, Light Duty
Item #: 32145104
Brand: Dayton Lamina
Model #: 9-3228-11
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 2 |
| Rod Diameter (Inch) | 1 |
| Free Length (Inch) | 7 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (Lb.) | 27.80 |
| Maximum Deflection (Decimal Inch) | 2.8000 |
| Travel To Solid Load (Decimal Inch) | 3.5400 |
