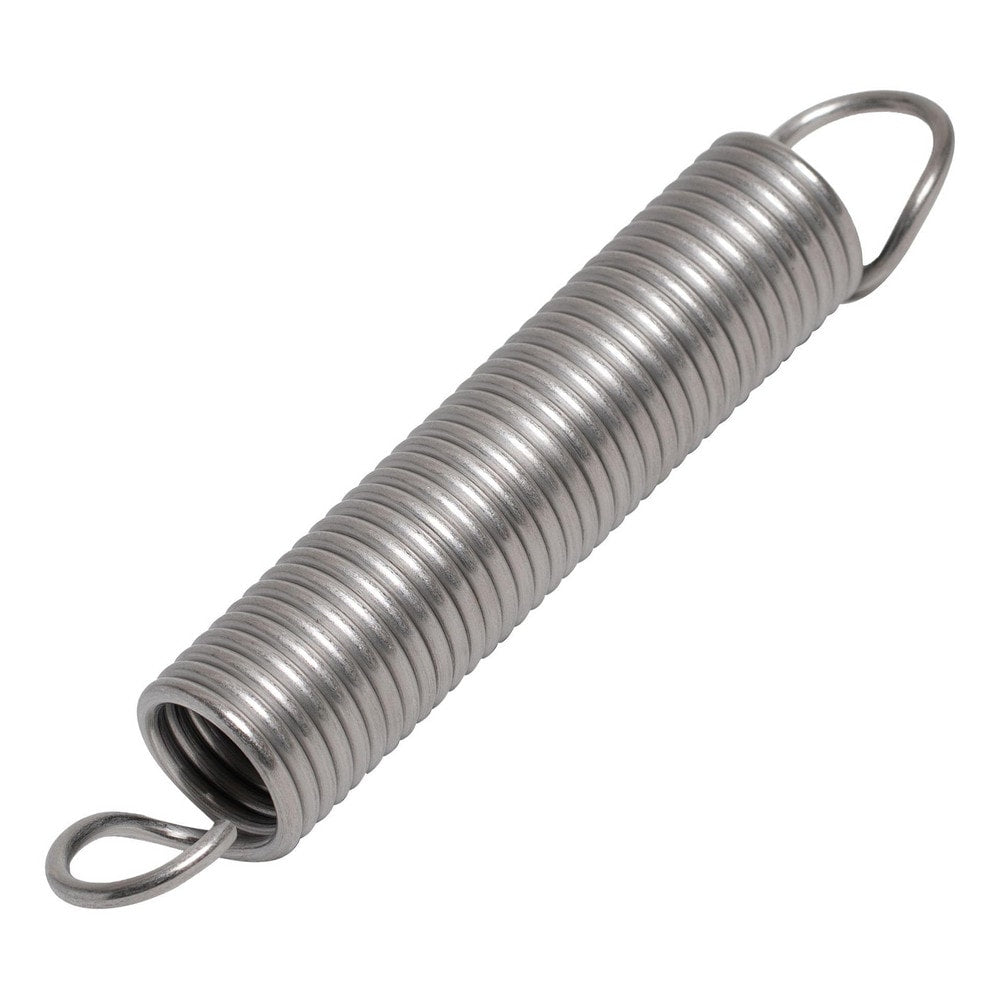

Extension Springs; End Type: Full Twist Loop; Outside Diameter (mm): 18.0000; Spring Rate: 4.7000; Material: Stainless Steel; Overall Length (Decimal Inch): 12.1360
Item #: 03020302
Brand: Associated Spring Raymond
Model #: MCEM1802500303S
Product Specifications
| End Type | Full Twist Loop |
| Outside Diameter (mm) | 18.0000 |
| Spring Rate | 4.7000 |
| Material | Stainless Steel |
| Overall Length (Decimal Inch) | 12.1360 |
| Initial Tension (N) | 48.4 |
| Maximum Extended Length (mm) | 485.87 |
| Free Length (mm) | 303.200 |
| Inside Hook Length (Fractional Inch) | 11-15/16 |
| Standards | EN 10270-3; JIS G4314 SUS 302; ASTM A313 |
| Finish/Coating | Uncoated |
| Wire Size (mm) | 2.50 |
| UNSPSC Code | 31161907 |
