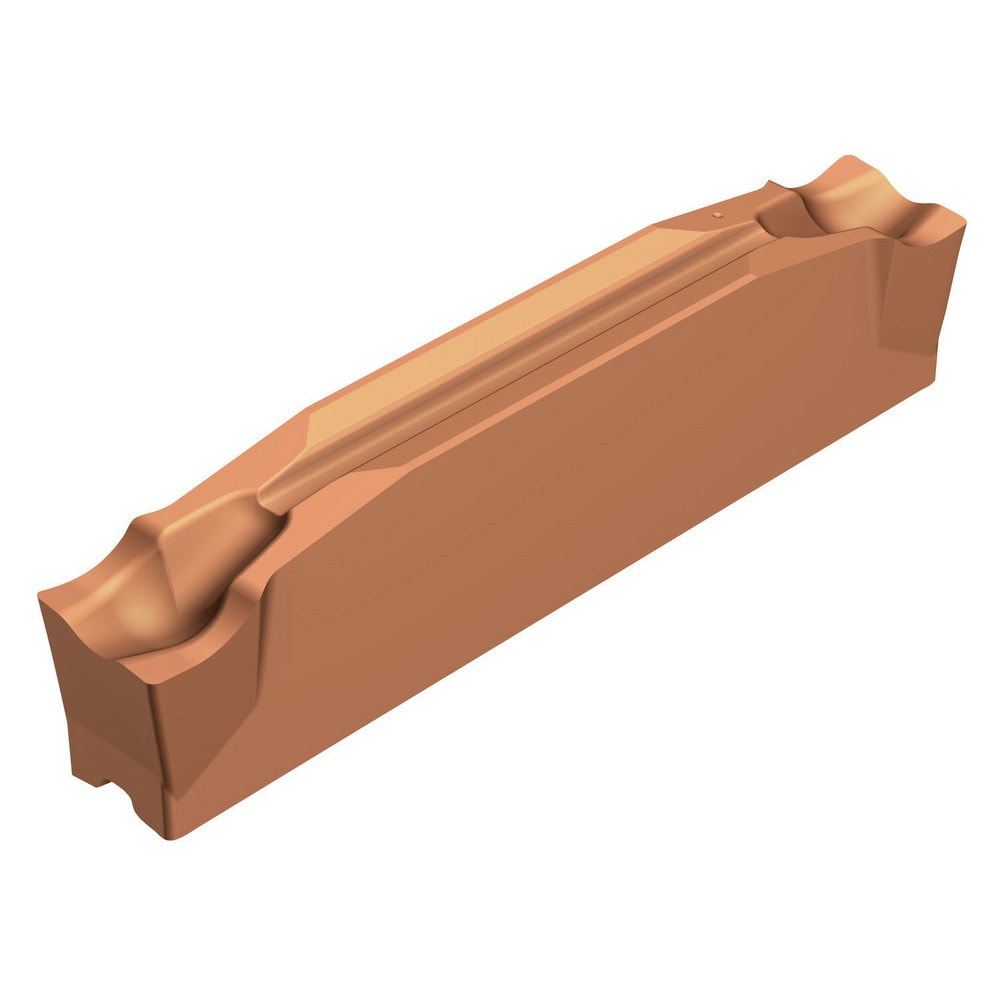

Cutoff Insert: C2IH2L04000502CM 1145, Carbide, 4.00 mm Cutting Width, 0.1575" Cutting Width
Item #: 08678211
Brand: Sandvik Coromant
Model #: 8194220
Product Specifications
| Insert Style | C2I |
| Insert Size Code | H2 |
| Insert Material | Carbide |
| Manufacturer Grade | 1145 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Cutting Width (mm) | 4.00 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Left Hand |
| Insert Hand | Left Hand |
| Lead Angle | 0 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Chipbreaker | CM |
| Multi-use Tool | No |
| Cutting Tool Application | Cut-off; Parting |
| Series | CoroCut 2 |
| Coating Process | PVD |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | C2I-H2L-0400-0502-CM1145 |
| Cutting Height (mm) | 24.10 |
| Cutting Height (Decimal Inch) | 0.9488 |
| Manufacturers Catalog Number | C2I-H2L-0400-0502-CM1145 |
| Insert Seat Size | H |
| Cutting Direction | Left Hand |
| Coating/Finish | TiAlN/TiAlN |
| UNSPSC Code | 23242105 |
