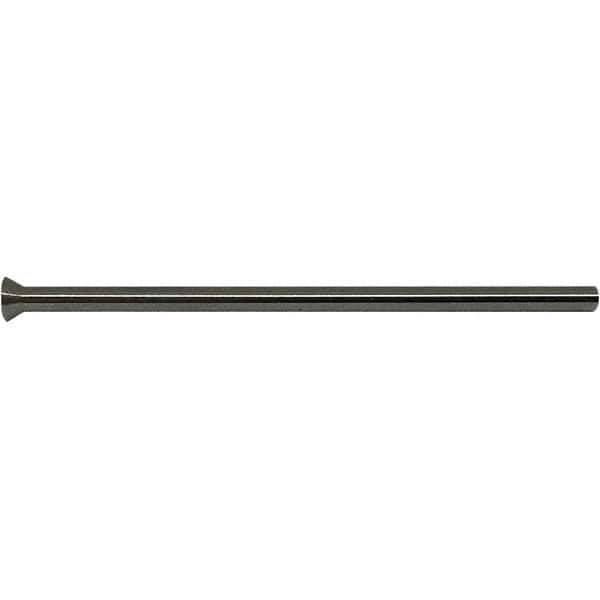

Gibraltar - 19/64" Pin Diam, 0.5346" Head Diam x 3/8" Head Height, 2-1/2" OAL, Conical Pin - High Speed Steel
Item #: 31439656
Brand: Gibraltar
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Pin Type | Conical Pin |
| Pin Diameter (Decimal Inch) | 0.2970 |
| Head Diameter (Decimal Inch) | 0.5346 |
| Head Height (Decimal Inch) | 0.3742 |
| Overall Length (Inch) | 2-1/2 |
| Material | High Speed Steel |
| Finish/Coating | Nitride |
| Tolerance (Decimal Inch) | +0.0000/-0.0003 (Pin Diameter); +0.0000/-0.0020 (Head Thickness); +0.0000/-0.0100 (Head Diameter); +0.1250/-0.0000 (Overall Length) |
