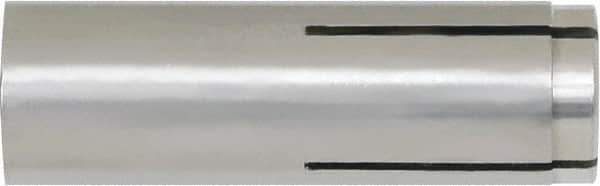

Powers Fasteners - 5/8" Diam, 7/8" Drill, 2-1/2" OAL, Drop-In Concrete Anchor - 316 Stainless Steel, Hammer Drive, 1-13/16" Thread Length
Item #: 31191158
Brand: Powers Fasteners
Model #: 06230-PWR
Exact Tooling IR#: 04
Features and Benefits
Drop-in concrete anchors are internally threaded expansion anchors used with machine screws and bolts. They are ideal for use in concrete, block and stone.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Drop-In |
| Diameter (Inch) | 5/8 |
| Drill Size (Inch) | 7/8 |
| Overall Length (Inch) | 2-1/2 |
| Minimum Embedment (Inch) | 2-1/2 |
| Material | Stainless Steel |
| Material Grade | 316 |
| Thread Size | 5/8-11 |
| Drive Type | Hammer |
| Thread Length (Inch) | 1-13/16 |
| For Use With | Normal Weight Concrete |
| Bolt Size (Inch) | 5/8 |
| System of Measurement | Inch |
