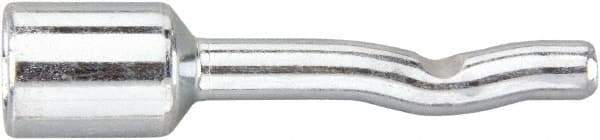

Powers Fasteners - 3/8" Diam, 1/4" Drill, 2-3/8" OAL, 3-5/8" Min Embedment Pin Anchor Concrete Anchor - 1038 Carbon Steel, Zinc-Plated Finish, Round Head, Hammer Drive, 5/8" Thread Length
Item #: 31191083
Brand: Powers Fasteners
Model #: 03758-PWR
Exact Tooling IR#: 04
Features and Benefits
Pin anchors are designed with a taper-proof spike for use in concrete and masonry work. The spike creates a removable expansion anchor design for easy installation in roofing and hanging applications.
Carbon steel is a soft, durable metal. It is commonly used on abrasive materials, concrete, nonferrous metals, plastics and wood.
| Product Specifications | |
|---|---|
| Type | Pin Anchor |
| Diameter (Inch) | 3/8 |
| Drill Size (Inch) | 1/4 |
| Overall Length (Inch) | 2-3/8 |
| Minimum Embedment (Inch) | 1-3/4 |
| Material | Carbon Steel |
| Material Grade | 1038 |
| Finish/Coating | Zinc-Plated |
| Head Type | Round |
| Thread Size | 3/8-16 |
| Drive Type | Hammer |
| Thread Length (Inch) | 5/8 |
| For Use With | Normal Weight Concrete |
| Bolt Size (Inch) | 3/8 |
| System of Measurement | Inch |
