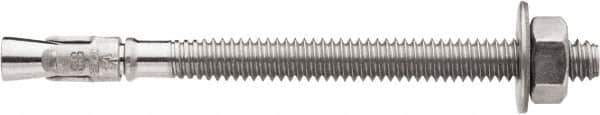

Powers Fasteners - 3/8" Diam, 3/8" Drill, 2-3/4" OAL, 1" Min Embedment Wedge Expansion Concrete Anchor - 316 Stainless Steel, Hex Nut Head, Hex Drive, 1-5/8" Thread Length
Item #: 31189236
Brand: Powers Fasteners
Model #: 7612SD6-PWR
Exact Tooling IR#: 04
Features and Benefits
Wedge expansion concrete anchors are heavy-duty anchors used in cracked and uncracked concrete. They have expansion wedges that expand in concrete holes to increase holding power.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Wedge Expansion |
| Diameter (Inch) | 3/8 |
| Drill Size (Inch) | 3/8 |
| Overall Length (Inch) | 2-3/4 |
| Minimum Embedment (Inch) | 1-5/8 |
| Material | Stainless Steel |
| Material Grade | 316 |
| Head Type | Hex Nut |
| Thread Size | 3/8-16 |
| Drive Type | Hex |
| Thread Length (Inch) | 1-5/8 |
| For Use With | Normal Weight Concrete; Structural Lightweight Concrete; Grouted Concrete Masonry |
| Bolt Size (Inch) | 3/8 |
| System of Measurement | Inch |
