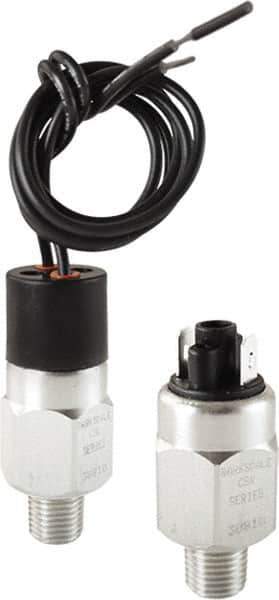

Barksdale - 60 to 60 psi Adjustable Range, 9,000 Max psi, Compact Pressure Switch - 1/8 NPT Male, 1/4in Male Spade Terminals, SPST/ NO Contact, Brass Wetted Parts, 4% Repeatability
Item #: 31075773
Brand: Barksdale
Model #: CSK2-11-22B-60R
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 60 psi |
| Minimum Adjustable Range | 60 psi |
| Type | Compact Pressure Switch |
| Maximum Pressure Setting | 9000 psi |
| Thread Size | 1/8 |
| Thread Type | NPT Male |
| Electrical Connection | 1/4in Male Spade Terminals |
| Amperage Rating | 8 Amp@12VDC; 4 Amp@24VDC; 2 Amp@30VDC |
| Contact Type | SPST/ NO |
| Wetted Parts Material | Brass |
| Repeatability | 4% |
| Contact Form | SPST N.O |
| Maximum Adjustable Range on Fall | 60 |
| Maximum Adjustable Range on Rise | 60 |
| Maximum Deadband | 0.00 |
| Maximum Setpoint Deadband | 0.00 |
| Maximum Temperature (C) | 82 |
| Maximum Temperature (F) | 180 |
| Minimum Adjustable Range on Fall | 60 |
| Minimum Adjustable Range on Rise | 60 |
| Minimum Deadband | 0 psi |
| Minimum Setpoint Deadband | 0.00 |
| Minimum Temperature (C) | -29 |
| Minimum Temperature (F) | -20 |
| Additional Information | Brass; 60deg F Rising Set Point; BUNA-N Diaphragm |
