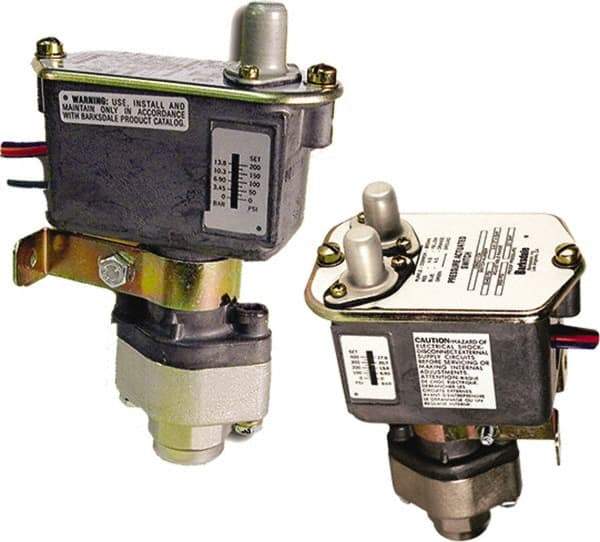

Barksdale - 250 to 3,000 psi Adjustable Range, 7,000 Max psi, Sealed Piston Pressure Switch - 1/4 NPT Female, 18in Free Leads, 2 x SPDT Contact, Nickel Plated Al Wetted Parts, 2% Repeatability
Item #: 31045404
Brand: Barksdale
Model #: C9622-3-S0034
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 3000 psi |
| Minimum Adjustable Range | 250 psi |
| Type | Sealed Piston Pressure Switch |
| Maximum Pressure Setting | 7000 psi |
| Thread Size | 1/4 |
| Thread Type | NPT Female |
| Electrical Connection | 18in Free Leads |
| Amperage Rating | 10 Amp@125/250/480VAC; 0.03 Amp@250VDC |
| Contact Type | 2 x SPDT |
| Wetted Parts Material | Nickel Plated Al |
| Repeatability | 2% |
| Contact Form | 2 x SPDT |
| Maximum Adjustable Range on Fall | 3000 |
| Maximum Adjustable Range on Rise | 3000 |
| Maximum Deadband | 350.00 |
| Maximum Setpoint Deadband | 350.00 |
| Maximum Temperature (C) | 74 |
| Maximum Temperature (F) | 165 |
| Minimum Adjustable Range on Fall | 250 |
| Minimum Adjustable Range on Rise | 250 |
| Minimum Deadband | 30 psi |
| Minimum Setpoint Deadband | 30.00 |
| Minimum Temperature (C) | -29 |
| Minimum Temperature (F) | -20 |
| Additional Information | Nickel Plated Aluminum; 1600deg F Rising Set Point |
