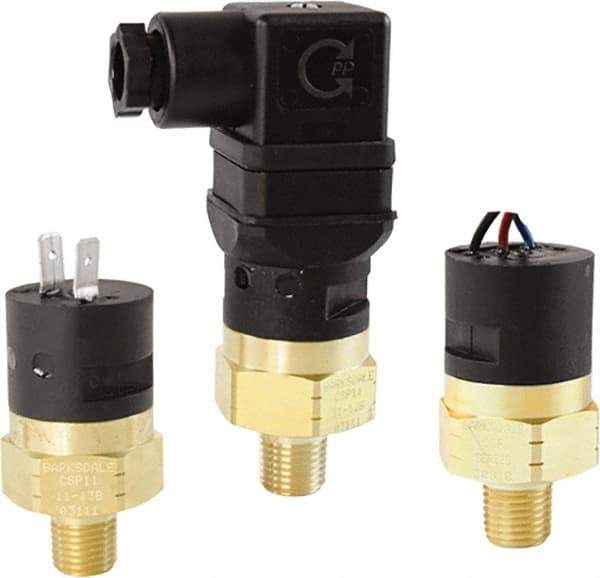

Barksdale - 71 to 71 psi Adjustable Range, 350 Max psi, Compact Pressure Switch - 7/16-20 UNF SAE, Deutsch 2 Pins DT04-2P, SPST/ NO Contact, Brass Wetted Parts, 3% Repeatability
Item #: 31043425
Brand: Barksdale
Model #: CSP2-12-34B-71R
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 71 psi |
| Minimum Adjustable Range | 71 psi |
| Type | Compact Pressure Switch |
| Maximum Pressure Setting | 350 psi |
| Thread Size | 7/16-20 |
| Thread Type | UNF SAE |
| Electrical Connection | Deutsch 2 Pins DT04-2P |
| Amperage Rating | 10 Amp@125VAC; 6 Amp@250VAC |
| Contact Type | SPST/ NO |
| Wetted Parts Material | Brass |
| Repeatability | 3% |
| Contact Form | SPST N.O |
| Maximum Adjustable Range on Fall | 71 |
| Maximum Adjustable Range on Rise | 71 |
| Maximum Deadband | 0.00 |
| Maximum Setpoint Deadband | 0.00 |
| Maximum Temperature (C) | 80 |
| Maximum Temperature (F) | 176 |
| Minimum Adjustable Range on Fall | 71 |
| Minimum Adjustable Range on Rise | 71 |
| Minimum Deadband | 0 psi |
| Minimum Setpoint Deadband | 0.00 |
| Minimum Temperature (C) | -29 |
| Minimum Temperature (F) | -20 |
| Additional Information | Brass; 71deg F Rising Set Point; BUNA-N Diaphragm |
