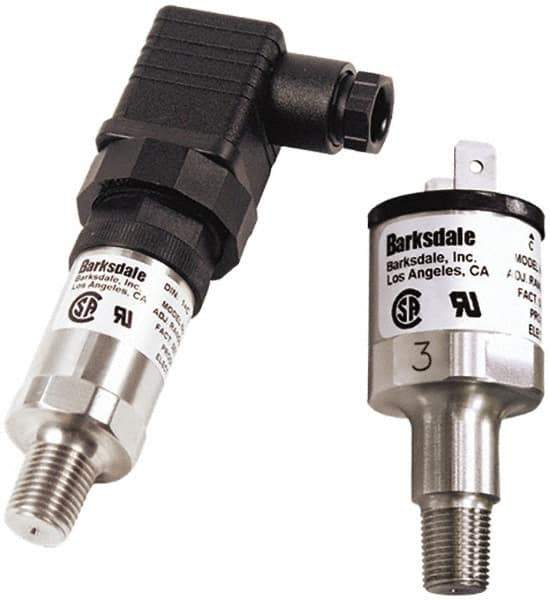

Barksdale - 20 to 120 psi Adjustable Range, 140 Max psi, Compact Pressure Switch - 1/4 NPT Male, 18in Free Leads, SPST/ NO Contact, SS Wetted Parts, 8% Repeatability
Item #: 31041270
Brand: Barksdale
Model #: 733S-43-2B-60F
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 120 psi |
| Minimum Adjustable Range | 20 PSI |
| Type | Compact Pressure Switch |
| Maximum Pressure Setting | 140 psi |
| Thread Size | 1/4 |
| Thread Type | NPT Male |
| Electrical Connection | 18in Free Leads |
| Amperage Rating | 5A@125/250VAC |
| Contact Type | SPST/ NO |
| Wetted Parts Material | SS |
| Repeatability | 8% |
| Contact Form | SPST N.O |
| Maximum Adjustable Range on Fall | 120 |
| Maximum Adjustable Range on Rise | 120 |
| Maximum Deadband | 30.00 |
| Maximum Setpoint Deadband | 30.00 |
| Maximum Temperature (C) | 82 |
| Maximum Temperature (F) | 180 |
| Minimum Adjustable Range on Fall | 20 |
| Minimum Adjustable Range on Rise | 20 |
| Minimum Deadband | 5 psi |
| Minimum Setpoint Deadband | 5.00 |
| Minimum Temperature (C) | -40 |
| Minimum Temperature (F) | -40 |
| Additional Information | Stainless Steel; 60deg F Falling Set Point; BUNA-N Diaphragm |
