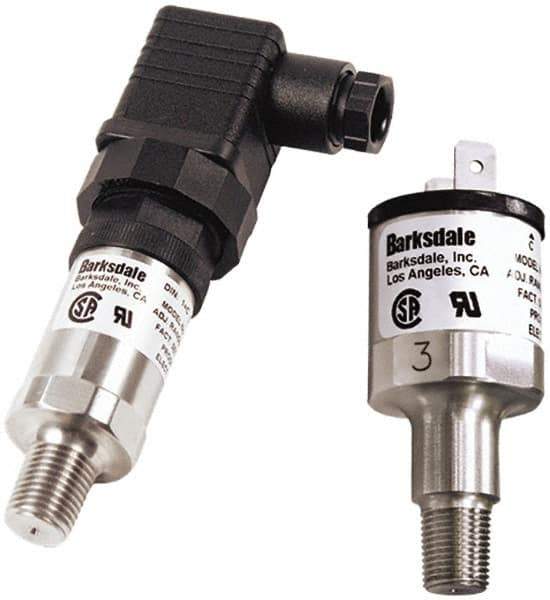

Barksdale - 5 to 50 psi Adjustable Range, 100 Max psi, Compact Pressure Switch - 1/4 NPT Male, 18" Free Leads/Unshielded PVC Jacketed Cable, SPDT Contact, SS Wetted Parts, 8% Repeatability
Item #: 31040009
Brand: Barksdale
Model #: 722S-14-2B
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 50 psi |
| Minimum Adjustable Range | 5 psi |
| Type | Compact Pressure Switch |
| Maximum Pressure Setting | 100 psi |
| Thread Size | 1/4 |
| Thread Type | NPT Male |
| Electrical Connection | 18" Free Leads/Unshielded PVC Jacketed Cable |
| Amperage Rating | 5A@125/250VAC |
| Contact Type | SPDT |
| Wetted Parts Material | SS |
| Repeatability | 8% |
| Contact Form | SPDT |
| Maximum Adjustable Range on Fall | 50 |
| Maximum Adjustable Range on Rise | 50 |
| Maximum Deadband | 15.00 |
| Maximum Setpoint Deadband | 15.00 |
| Maximum Temperature (C) | 82 |
| Maximum Temperature (F) | 180 |
| Minimum Adjustable Range on Fall | 5 |
| Minimum Adjustable Range on Rise | 5 |
| Minimum Deadband | 2 psi |
| Minimum Setpoint Deadband | 2.00 |
| Minimum Temperature (C) | -40 |
| Minimum Temperature (F) | -40 |
| Additional Information | Stainless Steel; BUNA-N Diaphragm |
