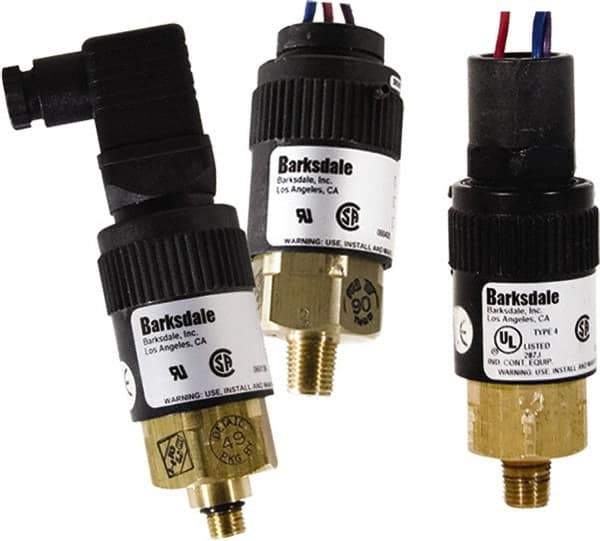

Barksdale - 22.5 to 125 psi Adjustable Range, 1,000 Max psi, Compact Pressure Switch - 1/4 NPT Male, DIN 43650, SPDT Contact, Brass Wetted Parts, 2% Repeatability
Item #: 31038755
Brand: Barksdale
Model #: T96211-BB4-T2
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 125 psi |
| Minimum Adjustable Range | 22.5 psi |
| Type | Compact Pressure Switch |
| Maximum Pressure Setting | 1000 psi |
| Thread Size | 1/4 |
| Thread Type | NPT Male |
| Electrical Connection | DIN 43650 |
| Amperage Rating | 5 Amp@125/250VAC; 5 Amp@30VDC |
| Contact Type | SPDT |
| Wetted Parts Material | Brass |
| Repeatability | 2% |
| Contact Form | SPDT |
| Maximum Adjustable Range on Fall | 125 |
| Maximum Adjustable Range on Rise | 125 |
| Maximum Deadband | 15.00 |
| Maximum Setpoint Deadband | 15.00 |
| Maximum Temperature (C) | 74 |
| Maximum Temperature (F) | 165 |
| Minimum Deadband | 1.0 psi |
| Minimum Setpoint Deadband | 1.00 |
| Minimum Temperature (C) | -29 |
| Minimum Temperature (F) | -20 |
| Additional Information | Brass; Tamper Resistant Setscrew; BUNA-N O-Ring |
