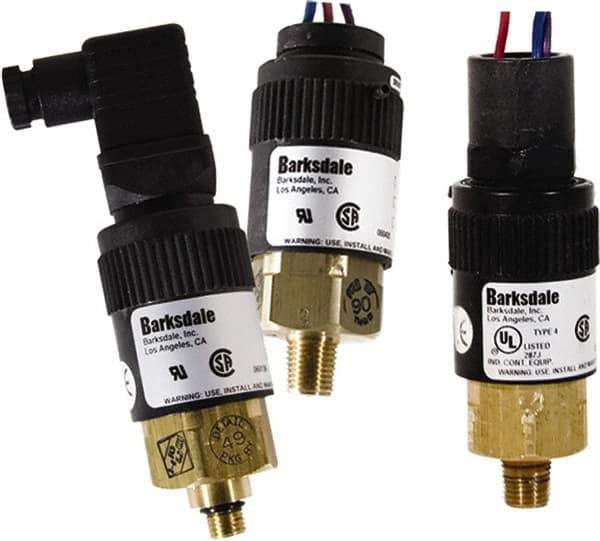

Barksdale - 1 to 30 PSI Adjustable Range, 30 inHg Max psi, Compact Pressure Switch - 1/4 NPT Male, 12in Free Leads, SPDT Contact, Brass Wetted Parts, 2% Repeatability
Item #: 31038698
Brand: Barksdale
Model #: T96221-BB1
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 30 PSI |
| Minimum Adjustable Range | 1 psi |
| Type | Compact Pressure Switch |
| Maximum Pressure Setting | 30 inHg |
| Thread Size | 1/4 |
| Thread Type | NPT Male |
| Electrical Connection | 12in Free Leads |
| Amperage Rating | 5 Amp@125/250VAC; 5 Amp@30VDC |
| Contact Type | SPDT |
| Wetted Parts Material | Brass |
| Repeatability | 2% |
| Contact Form | SPDT |
| Maximum Adjustable Range on Fall | 30 |
| Maximum Adjustable Range on Rise | 30 |
| Maximum Temperature (C) | 74 |
| Maximum Temperature (F) | 165 |
| Minimum Adjustable Range on Fall | 1 |
| Minimum Adjustable Range on Rise | 1 |
| Minimum Deadband | 0.5in Hg VAC |
| Minimum Temperature (C) | -18 |
| Minimum Temperature (F) | 0 |
| Additional Information | Brass; Tamper Resistant Setscrew; BUNA-N O-Ring |
