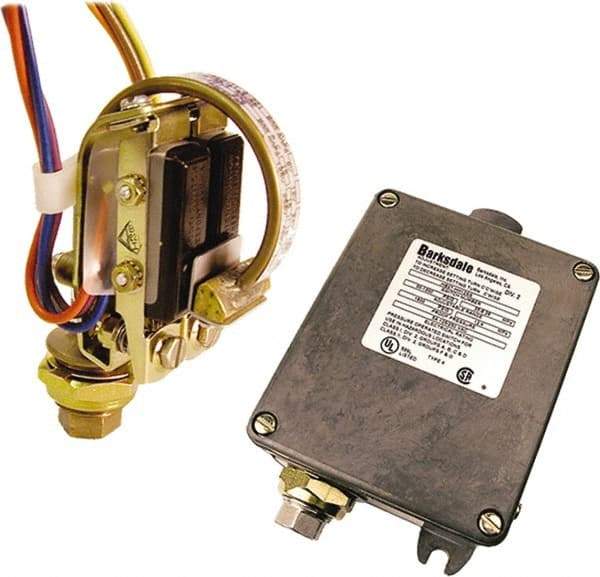

Barksdale - 240 to 4,800 psi Adjustable Range, 6,000 Max psi, Bourdon Tube Pressure Switch - 1/4 NPT Female, 12in Free Leads, 2 x SPDT Contact, 316SS Wetted Parts, 1% Repeatability
Item #: 31037138
Brand: Barksdale
Model #: B2S-A48SS-CS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 4800 psi |
| Minimum Adjustable Range | 240 psi |
| Type | Bourdon Tube Pressure Switch |
| Maximum Pressure Setting | 6000 psi |
| Thread Size | 1/4 |
| Thread Type | NPT Female |
| Electrical Connection | 12in Free Leads |
| Amperage Rating | 10 Amp@125/250VAC; 3 Amp@480VAC; 0.5 Amp@24VDC |
| Contact Type | 2 x SPDT |
| Wetted Parts Material | 316SS |
| Repeatability | 1% |
| Contact Form | 2 x SPDT |
| Maximum Adjustable Range on Fall | 4800 |
| Maximum Adjustable Range on Rise | 4800 |
| Maximum Deadband | 85.00 |
| Maximum Setpoint Deadband | 85.00 |
| Maximum Temperature (C) | 74 |
| Maximum Temperature (F) | 165 |
| Minimum Adjustable Range on Fall | 240 |
| Minimum Adjustable Range on Rise | 240 |
| Minimum Deadband | 40 psi |
| Minimum Setpoint Deadband | 40.00 |
| Minimum Temperature (C) | -40 |
| Minimum Temperature (F) | -40 |
| Additional Information | 316SS; CSA Approved; UL Listed |
