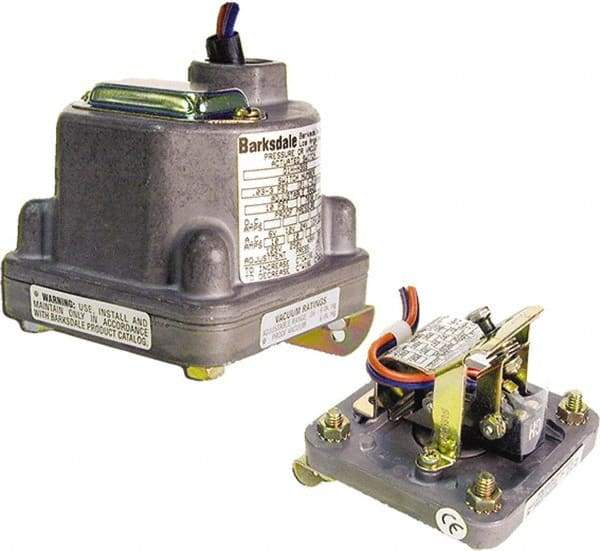

Barksdale - 0.4 to 18 psi Adjustable Range, 60 Max psi, Diaphragm Pressure Switch - 1/4 NPT Female, 18in Free Leads, 2 x SPDT Contact, 304SS Wetted Parts, 0.5% Repeatability
Item #: 31034861
Brand: Barksdale
Model #: D2H-H18SS-S0910
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 18 psi |
| Minimum Adjustable Range | 0.4 psi |
| Type | Diaphragm Pressure Switch |
| Maximum Pressure Setting | 60 psi |
| Thread Size | 1/4 |
| Thread Type | NPT Female |
| Electrical Connection | 18in Free Leads |
| Amperage Rating | 10 Amp@125/250VAC; 3 Amp@480VAC |
| Contact Type | 2 x SPDT |
| Wetted Parts Material | 304SS |
| Repeatability | 0.5% |
| Contact Form | 2 x SPDT |
| Maximum Adjustable Range on Fall | 18 |
| Maximum Adjustable Range on Rise | 18 |
| Maximum Deadband | 0.26 |
| Maximum Setpoint Deadband | 0.26 |
| Maximum Temperature (C) | 74 |
| Maximum Temperature (F) | 165 |
| Minimum Deadband | 0.12 psi |
| Minimum Setpoint Deadband | 0.12 |
| Minimum Temperature (C) | -40 |
| Minimum Temperature (F) | -40 |
| Additional Information | 304SS; 5deg F Rising Set Point |
