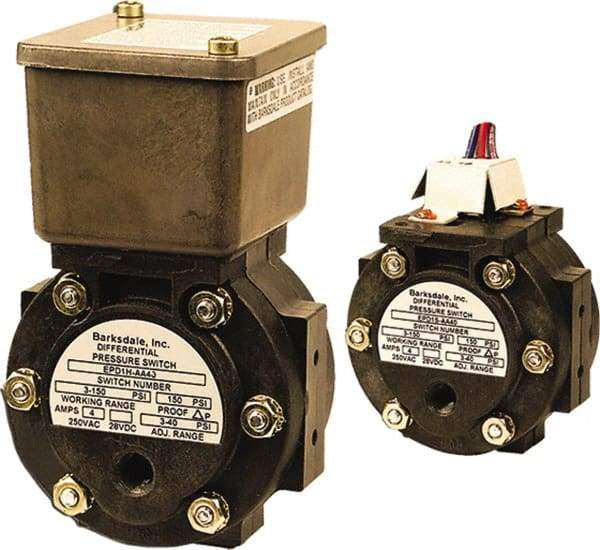

Barksdale - 3 to 40 psi Adjustable Range, 150 Max psi, Differential Pressure Switch - 1/8 NPT Female, Screw Terminals, SPDT Contact, Polysulfone Wetted Parts, 5% Repeatability
Item #: 31032410
Brand: Barksdale
Model #: EPD1H-AA40
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 40 psi |
| Minimum Adjustable Range | 3 psi |
| Type | Differential Pressure Switch |
| Maximum Pressure Setting | 150 psi |
| Thread Size | 1/8 |
| Thread Type | NPT Female |
| Electrical Connection | Screw Terminals |
| Amperage Rating | 4 Amp@125/250VAC |
| Contact Type | SPDT |
| Wetted Parts Material | Polysulfone |
| Repeatability | 5% |
| Contact Form | SPDT |
| Maximum Adjustable Range on Fall | 40 |
| Maximum Adjustable Range on Rise | 40 |
| Maximum Deadband | 1.20 |
| Maximum Setpoint Deadband | 1.20 |
| Maximum Temperature (C) | 74 |
| Maximum Temperature (F) | 165 |
| Minimum Adjustable Range on Fall | 3 |
| Minimum Adjustable Range on Rise | 3 |
| Minimum Deadband | 0.15 psi |
| Minimum Setpoint Deadband | 0.15 |
| Minimum Temperature (C) | -29 |
| Minimum Temperature (F) | -20 |
| Additional Information | Polysulfone; Dacron Reinforced Neoprene Diaphragm; J-Box Terminal Block |
