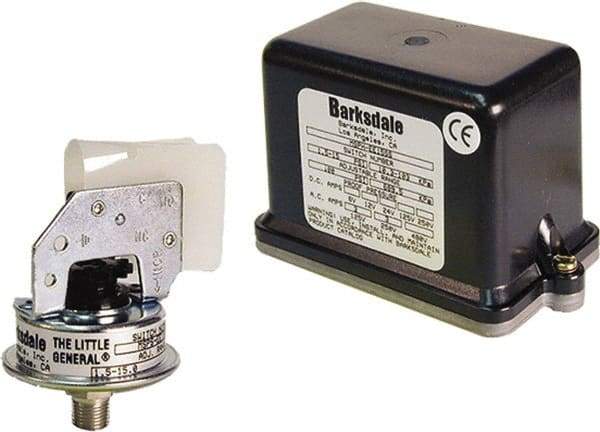

Barksdale - 0.5 to 5 psi Adjustable Range, 100 Max psi, Low Pressure Vacuum Switches - 1/8 NPT Male, Terminals, SPST Contact, Plastic Wetted Parts, 2% Repeatability
Item #: 31032089
Brand: Barksdale
Model #: MSPS-EE05-S0017
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 5 psi |
| Minimum Adjustable Range | 0.5 psi |
| Type | Low Pressure Vacuum Switches |
| Maximum Pressure Setting | 100 psi |
| Thread Size | 1/8 |
| Thread Type | NPT Male |
| Electrical Connection | Terminals |
| Amperage Rating | 3 Amp@125/250VAC |
| Contact Type | SPST |
| Wetted Parts Material | Plastic |
| Repeatability | 2% |
| Contact Form | SPST |
| Maximum Adjustable Range on Fall | 5 |
| Maximum Adjustable Range on Rise | 5 |
| Maximum Deadband | 0.70 |
| Maximum Setpoint Deadband | 0.70 |
| Maximum Temperature (C) | 74 |
| Maximum Temperature (F) | 165 |
| Minimum Deadband | 0.2 psi |
| Minimum Setpoint Deadband | 0.20 |
| Minimum Temperature (C) | -7 |
| Minimum Temperature (F) | 20 |
| Additional Information | Plastic; 2deg F Rising Set Point; BUNA-N Diaphragm |
