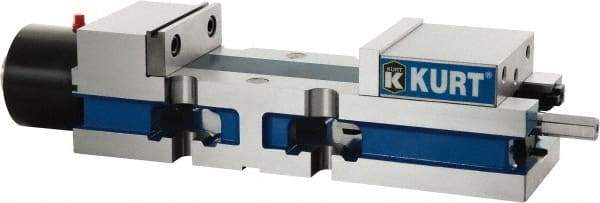

Kurt - 4" Jaw Width, 6" Jaw Opening Capacity, Horizontal Stationary Machine Vise - Hydraulic Operation, 7,800 Lb Capacity, 1 Station, 14.16" Long x 3.4900" High x 1-15/64" Deep, 1.235" Jaw Height, Ductile Iron
Item #: 30804561
Brand: Kurt
Model #: 3400H
Exact Tooling IR#: 04
Features and Benefits
Horizontal vises slide from side to side during milling operations.
Stationary vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 4 |
| Jaw Opening Capacity (Inch) | 6 |
| Throat Depth (Inch) | 1-15/64 |
| Orientation Type | Horizontal |
| Number of Stations | 1 |
| Base Motion Type | Stationary |
| Operation Type | Hydraulic |
| Jaw Height (Decimal Inch) | 1.2350 |
| Precision | Yes |
| Overall Length (Decimal Inch) | 14.1600 |
| Base Width (Inch) | 4 |
| Base Width (Decimal Inch) | 4.0000 |
| Vise Material | Ductile Iron |
| Load Capacity (Lb.) | 7800.00 |
| Overall Height (Inch) | 3.4900 |
