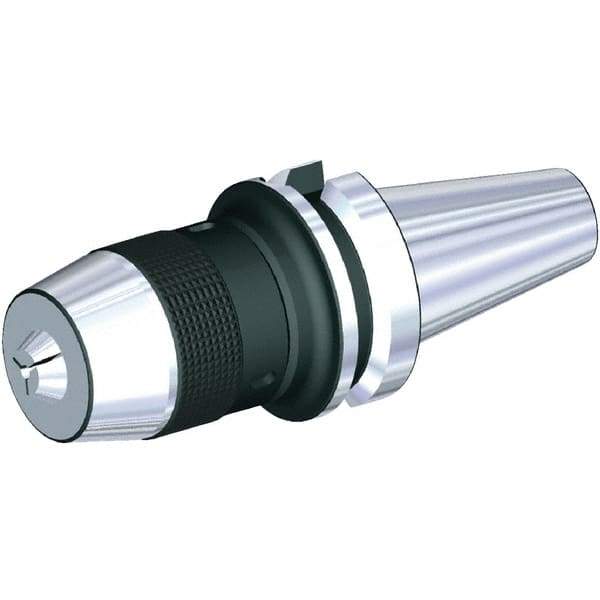

Kennametal - BT30, 0.5 to 8mm Capacity, Integral Shank Drill Chuck - Keyed, Taper Shank, 38mm Sleeve Diam, 92mm Open Length
Item #: 30733786
Brand: Kennametal
Model #: 3582592
Exact Tooling IR#: 04
Features and Benefits
Integral shank drill chucks are designed with the arbor (shank) built into the drill chuck, providing greater rigidity and concentricity than a press-fit tapered mount.
Keyed chucks are engineered to either loosen or tighten the hold on a tool by using a key. Keyed chucks offer the advantage of applying additional torque on the bit when slippage is a concern during heavy-duty applications.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Maximum Drill Chuck Capacity (mm) | 8.00 |
| Maximum Drill Chuck Capacity (Decimal Inch) | 0.3150 |
| Minimum Drill Chuck Capacity (mm) | 0.50 |
| Minimum Drill Chuck Capacity (Decimal Inch) | 0.0197 |
| Mount Type | Integral Shank |
| Mounting Size | BT30 |
| Key Style | Keyed |
| Material | Steel |
| Closed Length (mm) | 100.00 |
| Closed Length (Decimal Inch) | 3.9370 |
| Shank Type | Taper Shank |
| Open Length (mm) | 92.00 |
| Open Length (Decimal Inch) | 3.6220 |
| Sleeve Diameter (mm) | 38.00 |
| Sleeve Diameter (Decimal Inch) | 1.4961 |
| Includes | Wrench |
