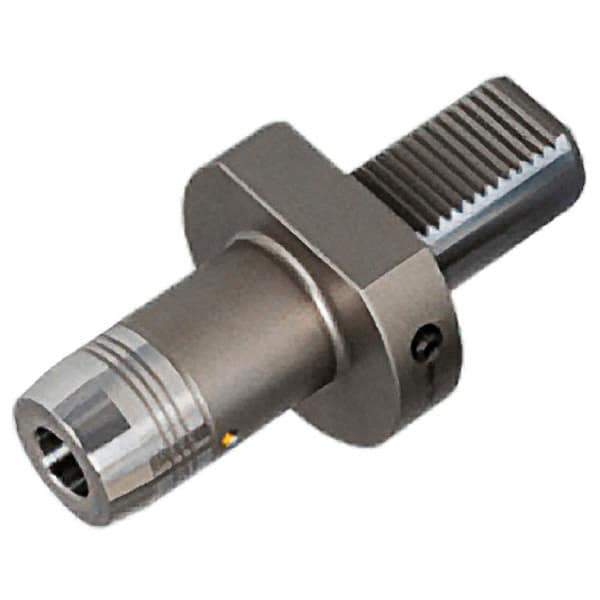

Iscar - 1.2598" Max Cut, 1.5748" Shank Diam, VDI Hydraulic Chuck - 95mm Projection, 3.2677" Head Width, 2.2047" Nose Diam, For VDI40, Through Coolant
Item #: 30722144
Brand: Iscar
Model #: 4559273
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | VDI Hydraulic Chuck |
| Maximum Cutting Tool Size (mm) | 32.00 |
| Maximum Cutting Tool Size (Decimal Inch) | 1.2598 |
| Projection (Decimal Inch) | 3.7402 |
| Projection (mm) | 95 |
| Through Coolant | Yes |
| Nose Diameter (mm) | 56.00 |
| Nose Diameter (Decimal Inch) | 2.2047 |
| Head Width (mm) | 83.00 |
| Head Width (Decimal Inch) | 3.2677 |
| VDI Form Type | VDI40 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
