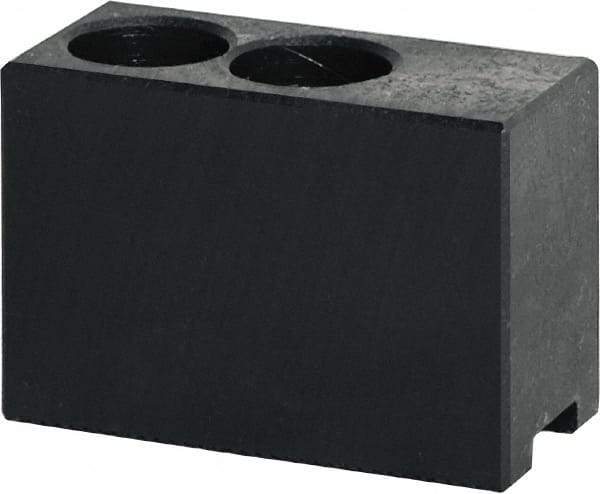

Bison - 500mm Max Chuck Capacity, 1.5mm x 60° Serrated Interface, Square Soft Lathe Chuck Jaw - Steel, 43mm Btw Mount Hole Ctrs, 60mm High, 25mm Groove, M20mm Fastener
Item #: 30522270
Brand: Bison
Model #: 7-788-320
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 20.0000 |
| Maximum Compatible Chuck Diameter (mm) | 500.00 |
| Minimum Compatible Chuck Diameter (mm) | 400.00 |
| Minimum Compatible Chuck Diameter (Decimal Inch) | 15.7500 |
| Overall Height (mm) | 60.00 |
| Overall Height (Decimal Inch) | 2.3622 |
| Groove Width (mm) | 25.00 |
| Groove Width (Decimal Inch) | 0.9842 |
| Distance Between Mount Hole Centers (mm) | 43.00 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.6929 |
| Tongue Width (Decimal Inch) | 0.0000 |
| Jaw End Shape | Square |
| Fastener Size (mm) | M20 |
