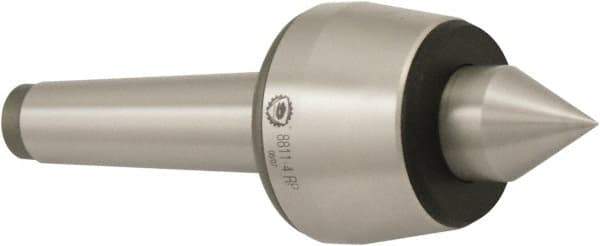

Bison - MT5 Morse Taper Shank, 85mm Head Diam, Live Center - 2,500 Max RPM, 40mm Point Diam, 1.73" Point Len, 4,190 Lb Max Workpc, Standard Point
Item #: 30520449
Brand: Bison
Model #: 7-565-105
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Morse Taper |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 4190.00 |
| Maximum Workpiece Weight (kg) | 1900.00 |
| Point Style | Standard |
| Point Diameter (mm) | 40.00 |
| Point Diameter (Decimal Inch) | 1.5740 |
| Tip Diameter (mm) | 40.00 |
| Tip Diameter (Decimal Inch) | 1.5740 |
| Point Length (Decimal Inch) | 1.7300 |
| Accuracy (Decimal Inch) | 0.000100 |
| Head Diameter (mm) | 85.00 |
| Head Diameter (Decimal Inch) | 3.3460 |
| Maximum RPM | 2500 |
