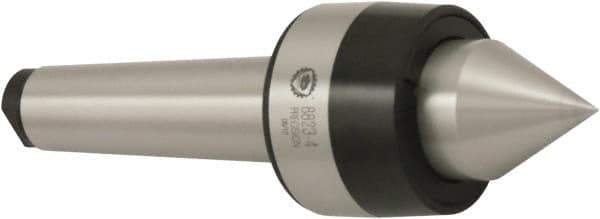

Bison - MT6 Morse Taper Shank, 90mm Head Diam, Live Center - 3,000 Max RPM, 60.5mm Point Diam, 2.46" Point Len, 3,086 Lb Max Workpc, Standard Point
Item #: 30520431
Brand: Bison
Model #: 7-567-006
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Morse Taper |
| Taper Size | MT6 |
| Maximum Workpiece Weight (Lb.) | 3086.00 |
| Maximum Workpiece Weight (kg) | 1400.00 |
| Point Style | Standard |
| Point Diameter (mm) | 60.50 |
| Point Diameter (Decimal Inch) | 2.3810 |
| Tip Diameter (mm) | 60.50 |
| Tip Diameter (Decimal Inch) | 2.3810 |
| Point Length (Decimal Inch) | 2.4600 |
| Accuracy (Decimal Inch) | 0.000100 |
| Head Diameter (mm) | 90.00 |
| Head Diameter (Decimal Inch) | 3.5430 |
| Maximum RPM | 3000 |
