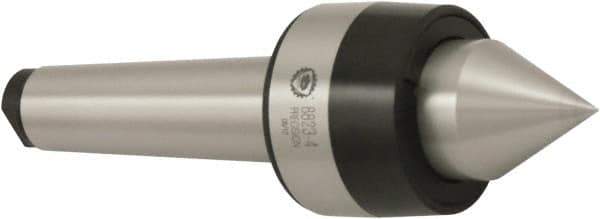

Bison - MT2 Morse Taper Shank, 44mm Head Diam, Live Center - 8,000 Max RPM, 24mm Point Diam, 1.04" Point Len, 220 Lb Max Workpc, Standard Point
Item #: 30520415
Brand: Bison
Model #: 7-567-002
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Morse Taper |
| Taper Size | MT2 |
| Maximum Workpiece Weight (Lb.) | 220.00 |
| Maximum Workpiece Weight (kg) | 100.00 |
| Point Style | Standard |
| Point Diameter (mm) | 24.00 |
| Point Diameter (Decimal Inch) | 0.9440 |
| Tip Diameter (mm) | 24.00 |
| Tip Diameter (Decimal Inch) | 0.9440 |
| Point Length (Decimal Inch) | 1.0400 |
| Accuracy (Decimal Inch) | 0.000100 |
| Head Diameter (mm) | 44.00 |
| Head Diameter (Decimal Inch) | 1.7320 |
| Maximum RPM | 8000 |
