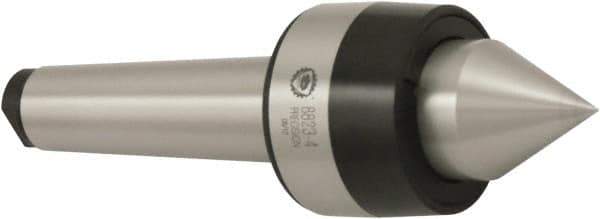

Bison - MT5 Morse Taper Shank, 75mm Head Diam, Live Center - 4,000 Max RPM, 50mm Point Diam, 2.19" Point Len, 1,433 Lb Max Workpc, Standard Point
Item #: 30520399
Brand: Bison
Model #: 7-567-005
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Morse Taper |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 1433.00 |
| Maximum Workpiece Weight (kg) | 650.00 |
| Point Style | Standard |
| Point Diameter (mm) | 50.00 |
| Point Diameter (Decimal Inch) | 1.9680 |
| Tip Diameter (mm) | 50.00 |
| Tip Diameter (Decimal Inch) | 1.9680 |
| Point Length (Decimal Inch) | 2.1900 |
| Accuracy (Decimal Inch) | 0.000100 |
| Head Diameter (mm) | 75.00 |
| Head Diameter (Decimal Inch) | 2.9520 |
| Maximum RPM | 4000 |
