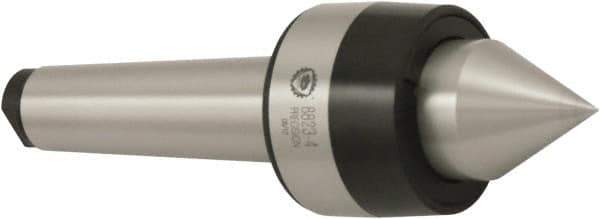

Bison - MT4 Morse Taper Shank, 60mm Head Diam, Live Center - 4,500 Max RPM, 38mm Point Diam, 1.71" Point Len, 882 Lb Max Workpc, Standard Point
Item #: 30520381
Brand: Bison
Model #: 7-567-004
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Morse Taper |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 882.00 |
| Maximum Workpiece Weight (kg) | 400.00 |
| Point Style | Standard |
| Point Diameter (mm) | 38.00 |
| Point Diameter (Decimal Inch) | 1.4960 |
| Tip Diameter (mm) | 38.00 |
| Tip Diameter (Decimal Inch) | 1.4960 |
| Point Length (Decimal Inch) | 1.7100 |
| Accuracy (Decimal Inch) | 0.000100 |
| Head Diameter (mm) | 60.00 |
| Head Diameter (Decimal Inch) | 2.3620 |
| Maximum RPM | 4500 |
