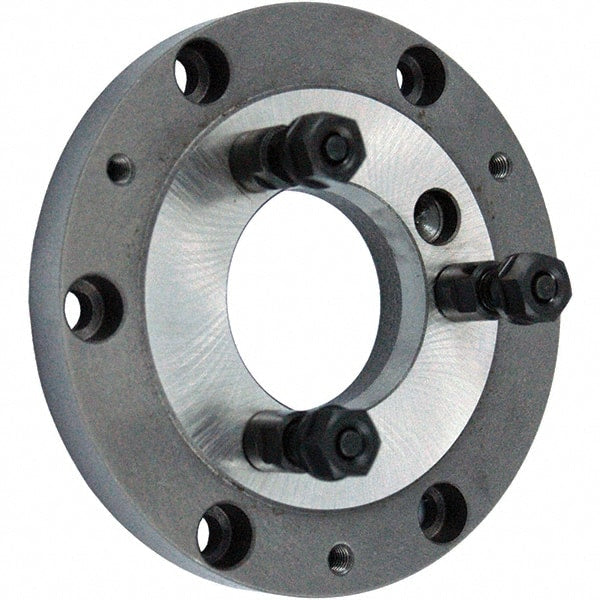

Lathe Chuck Adapter Back Plates; Nominal Chuck Size: 5 in; Mount Type: D1-6; Spindle Nose Type: D Series; Chuck Compatibility: Self-Centering Chucks; Through-hole Diameter: 55 mm; Chuck Diameter Compatibility: 5 in; 125 mm; Material: Cast Iron; Through-Ho
Item #: 30431894
Brand: Bison
Model #: 7-878-056F
Product Specifications
| Nominal Chuck Size | 5 in |
| Mount Type | D1-6 |
| Spindle Nose Type | D Series |
| Chuck Compatibility | Self-Centering Chucks |
| Through-hole Diameter | 55 mm |
| Chuck Diameter Compatibility | 5 in; 125 mm |
| Material | Cast Iron |
| Through-Hole Diameter (mm) | 55.00 |
| Chuck Diameter Compatibility (Inch) | 5; 5 in; 125 mm |
| Chuck Diameter Compatibility (mm) | 5 in; 125 mm; 125.00 |
| Inside Diameter (Decimal Inch) | 2.1600 |
| Outside Diameter (mm) | 181.00 |
| Outside Diameter (Inch) | 181 mm |
| Outside Diameter (Decimal Inch) | 181 mm |
| Flange Height (mm) | 41.00 |
| Flange Height (Decimal Inch) | 41 mm |
