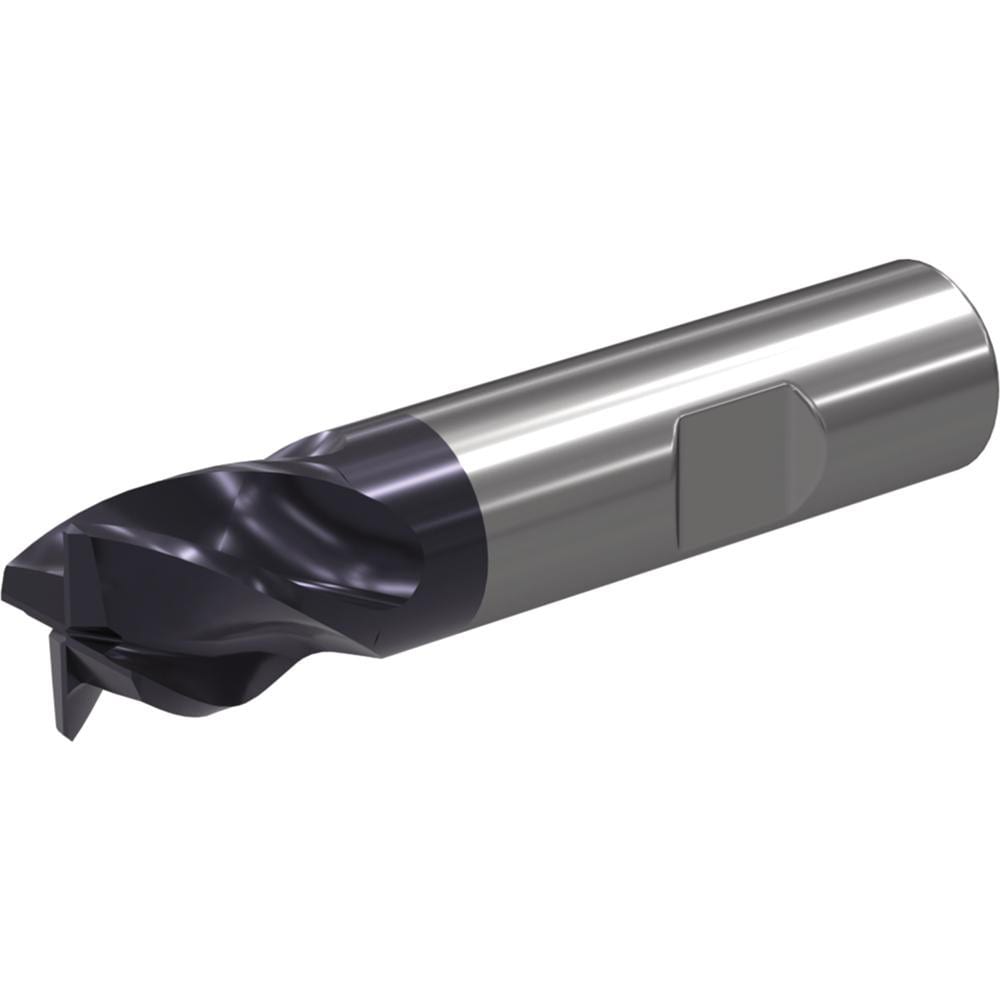

Brand: Widia / Part #: 6945729
Item #: 33985011
Brand: Widia
Model #: 6945729
Product Specifications
| Mill Diameter (Inch) | 1 |
| Chamfer Width (Decimal Inch) | 0.0200 |
| Coating/Finish | TiAlN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Single Or Double End | Single |
| Overall Length (Inch) | 5 |
| Overall Length (mm) | 5.00 |
| Length of Cut (Inch) | 2 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Flute Direction | Right Hand |
| Overall Length (Decimal Inch) | 5.0000 |
| Chipbreaker | No |
| End Type | Single |
| Chamfer Angle | 45 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.0000 |
| Length Type | Long |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Centercutting | Yes |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Minimum Helix Angle | 37.00 |
| Maximum Helix Angle | 37.00 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K; M |
| Secondary Workpiece Material | Super Alloys & Titanium |
| Secondary Workpiece Material Code | S |
| Material Grade | WU20PE |
| Series | W411 |
