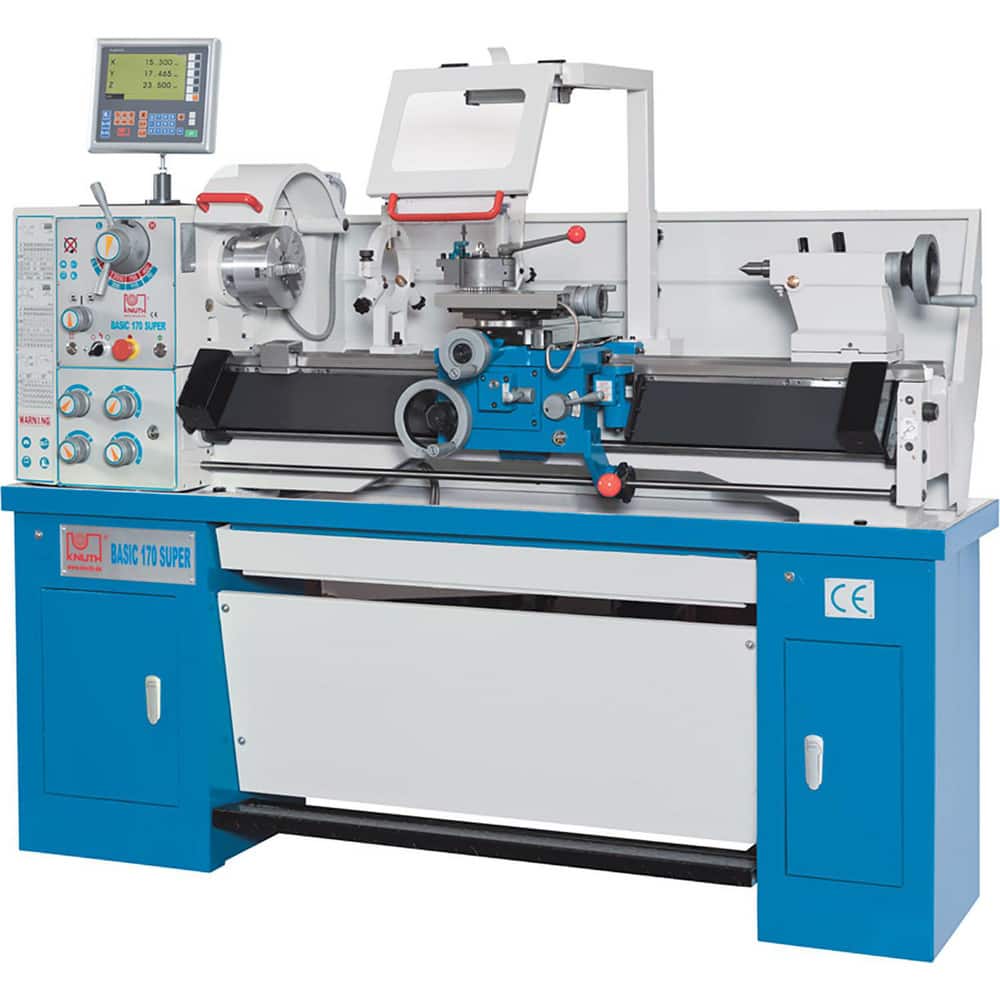

Bench, Engine & Toolroom Lathes; Horse Power: 2; Phase: 3; Spindle Speed Control: Geared Head; Bed Width: 7 in; Distance Between Centers: 39.37 in; Cross Slide Travel: 6.7 in; Swing: 13 in; Spindle Bore Diameter: 1 in; Minimum Spindle Speed: 70; Spindle N
Item #: 29771110
Brand: Knuth
Model #: 300815
Product Specifications
| Horse Power | 2 |
| Phase | 3 |
| Spindle Speed Control | Geared Head |
| Bed Width | 7 in |
| Distance Between Centers | 39.37 in |
| Cross Slide Travel | 6.7 in |
| Swing | 13 in |
| Spindle Bore Diameter | 1 in |
| Minimum Spindle Speed | 70 |
| Spindle Nose Designation | D1-4 |
| Maximum Spindle Speed | 2000 RPM |
| Overall Height | 52 in |
| Overall Depth | 27 in |
| Number of Inch Threads | 34 |
| Minimum Metric Pitch | 0.02 |
| Maximum Metric Pitch | 0.3 |
| Number of Metric Threads | 26 |
| Spindle Taper Size | Morse taper 5 |
| Tailstock Taper Size | Morse Taper 3 |
| Compound Travel | 4 |
| Minimum Threads Per Inch | 4 |
| Tailstock Travel | 0.5 in |
| Maximum Threads Per Inch | 56 |
| Minimum Longitudinal Feed Per Revolution | 0.00205 |
| Maximum Longitudinal Feed Per Revolution | 0.0548 |
| Minimum Cross Feed Rate Per Revolution | 0.00055 |
| Maximum Cross Feed Rate Per Revolution | 0.01496 |
| Swing Over Cross Slide | 8 |
| Number Of Spindle Speeds | 8 |
