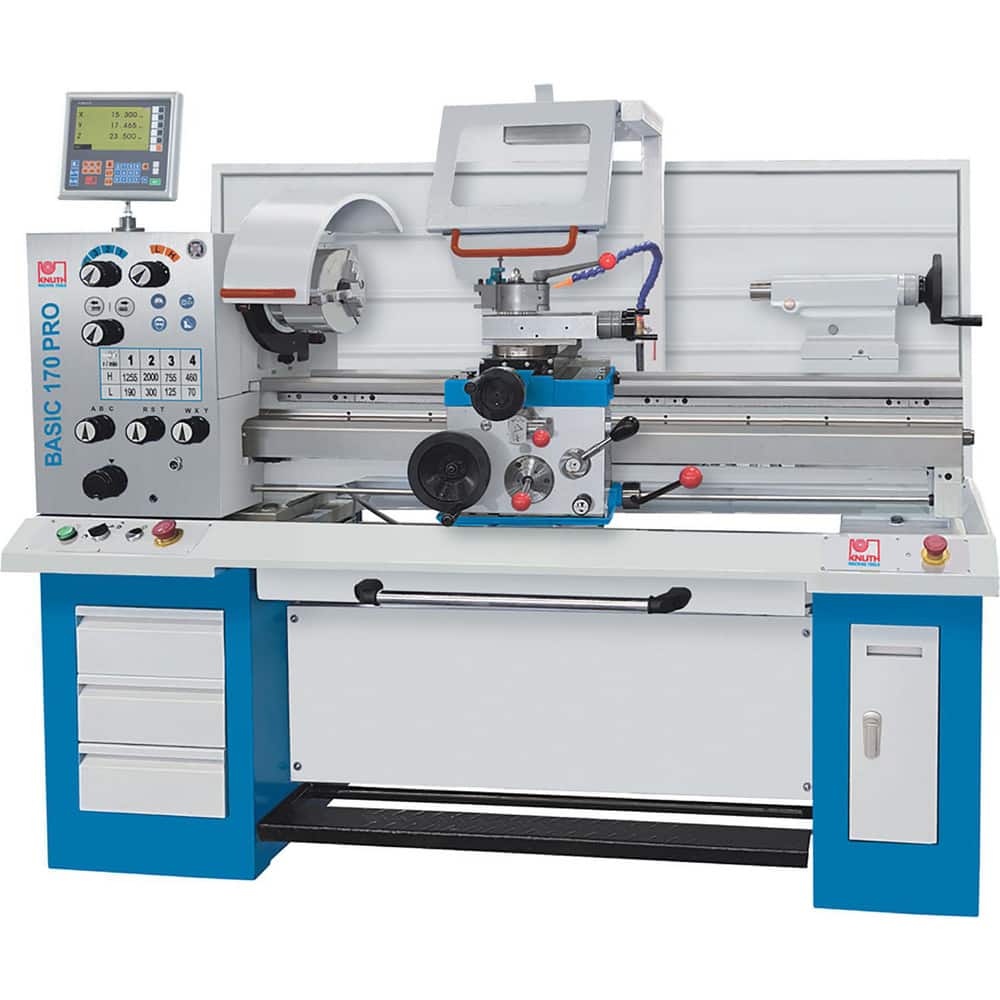

Bench, Engine & Toolroom Lathes; Horse Power: 2; Phase: 3; Spindle Speed Control: Geared Head; Bed Width: 7 in; Distance Between Centers: 39.37 in; Cross Slide Travel: 7.3 in; Gap Length: 7 in; Swing: 14 in; Spindle Bore Diameter: 2 in; Minimum Spindle Sp
Item #: 29771052
Brand: Knuth
Model #: 300814
Product Specifications
| Horse Power | 2 |
| Phase | 3 |
| Spindle Speed Control | Geared Head |
| Bed Width | 7 in |
| Distance Between Centers | 39.37 in |
| Cross Slide Travel | 7.3 in |
| Gap Length | 7 in |
| Swing | 14 in |
| Spindle Bore Diameter | 2 in |
| Minimum Spindle Speed | 70 |
| Spindle Nose Designation | D1-5 |
| Maximum Spindle Speed | 2000 RPM |
| Overall Height | 63 in |
| Overall Depth | 30 in |
| Number of Inch Threads | 56 |
| Minimum Metric Pitch | 0.02 |
| Maximum Metric Pitch | 14 |
| Number of Metric Threads | 48 |
| Spindle Taper Size | Morse taper 6 |
| Tailstock Taper Size | Morse Taper 3 |
| Compound Travel | 4 |
| Minimum Threads Per Inch | 2 |
| Tailstock Travel | 0.5 in |
| Maximum Threads Per Inch | 56 |
| Minimum Longitudinal Feed Per Revolution | 0.0016 |
| Maximum Longitudinal Feed Per Revolution | 0.11189 |
| Minimum Cross Feed Rate Per Revolution | 0.00115 |
| Maximum Cross Feed Rate Per Revolution | 0.08012 |
| Swing Over Cross Slide | 9 |
| Number Of Spindle Speeds | 8 |
