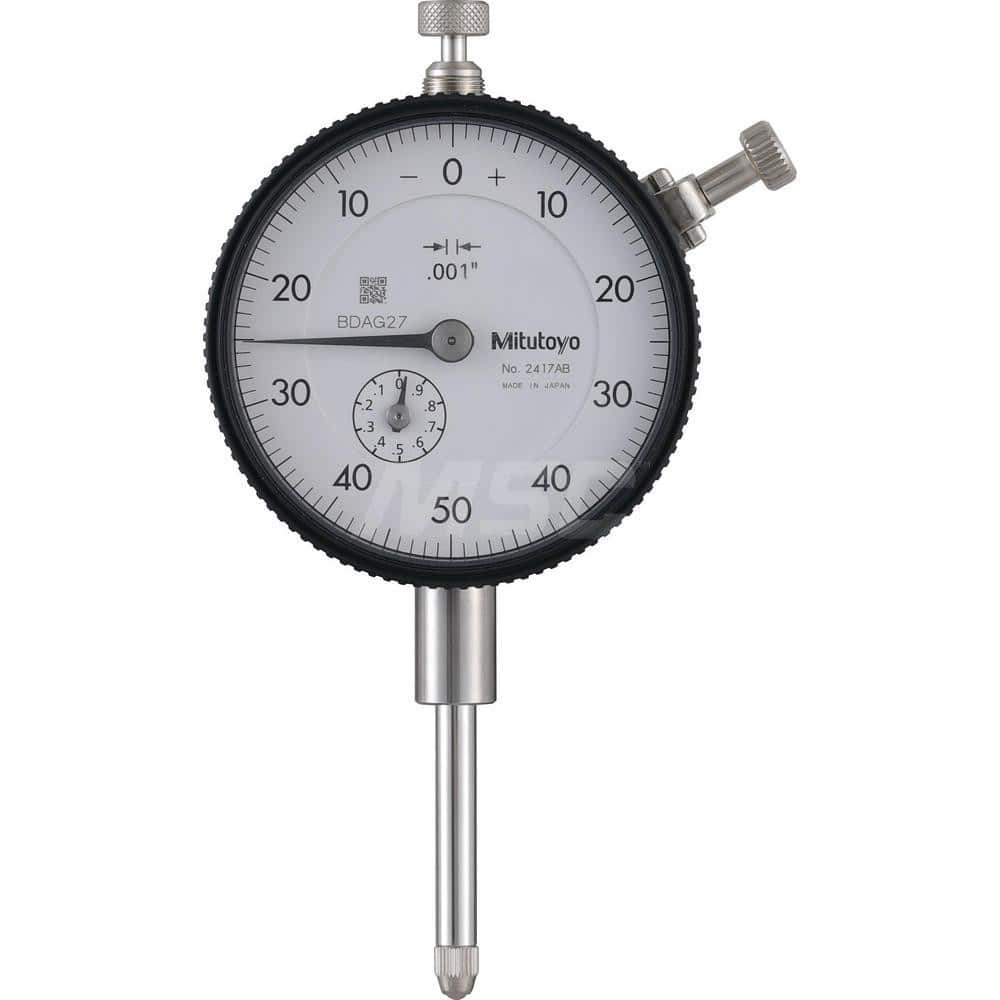

Dial Drop Indicator: 0 to 1″ Range, 0-50-0 Dial Reading, 0.001″ Graduation 0.1″ per Revolution, Flat Back, ±0.002″ Accuracy
Item #: 29454899
Brand: Mitutoyo
Model #: 2417AB
Product Specifications
| Accuracy (Decimal Inch) | ?0.002 |
| Back Type | Flat |
| Indicator Style | Plunger |
| Bearing Type | Plain |
| Minimum Measurement (mm) | 0.00 |
| Minimum Measurement (Decimal Inch) | 0.0000 |
| Maximum Measurement (mm) | 1.00 |
| Maximum Measurement (Decimal Inch) | 1.0000 |
| Dial Graduation (Decimal Inch) | 0.001000 |
| Dial Reading | 0-50-0 |
| Measuring Force (N) | |
| Base Mount Type | Clamp-on |
| Range Per Revolution (Decimal Inch) | 0.1000 |
