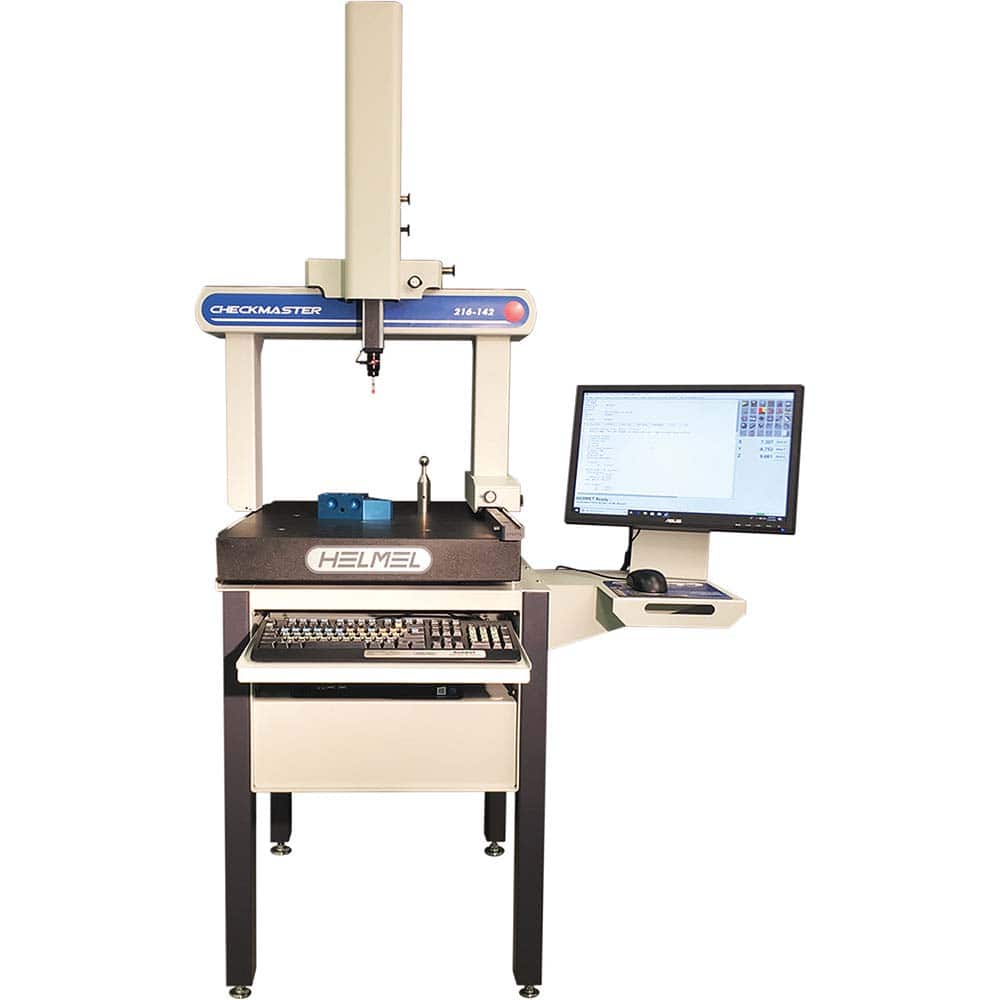

Helmel - 16" x 20" x 14" Phoenix Automatic CMM
Item #: 29283744
Brand: Helmel
Model #: PH216MH20iG101T
Product Specifications
| Probe Type | Touch Trigger |
| Measuring Range X axis (Decimal Inch) | 16.00 |
| Measuring Range X axis (mm) | 400 |
| Measuring Range Y Axis (Decimal Inch) | 20.00 |
| Measuring Range Y Axis (mm) | 500 |
| Measuring Range Z Axis (mm) | 350 |
| Measuring Range Z Axis (Decimal Inch) | 14.00 |
| Repeatability | 2.5 ?m (0.00010") |
| Resolution | 0.5 ?m (0.000020?) |
| Overall Height (Inch) | 81 |
| Overall Width (Inch) | 52 |
| Overall Depth (Inch) | 42 |
| Additional Information | Includes Geomet 101 Software |
