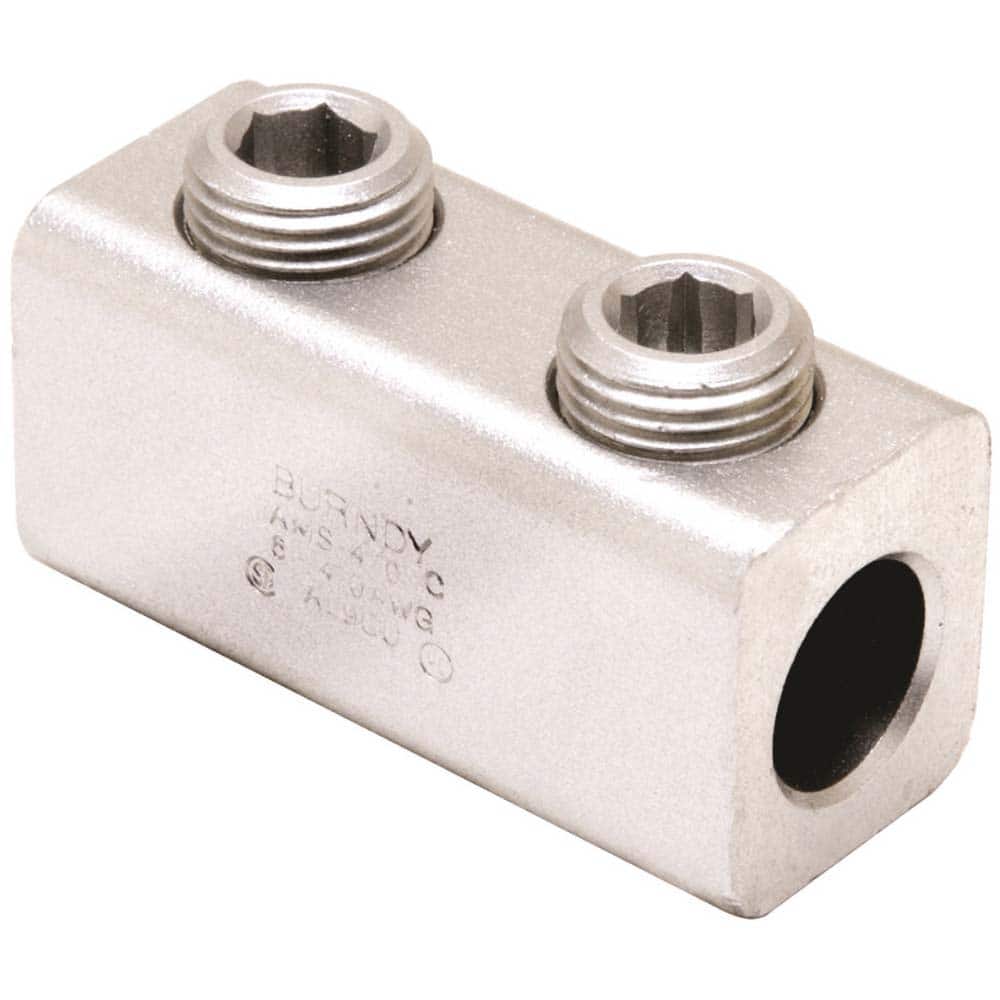

Burndy - Mechanical Connectors; Wire Size Range: 350 kcmil-6 AWG ; Material Type: Aluminum ; Insulated: NonInsulated ; Contact Plating: Tin ; Rating: CSA Certified; RoHS EX Compliant; UL 467 ; Additional Information: Type: AMS; Dual Rated; Hex Size: 5/16
Item #: 29226255
Brand: Burndy
Model #: AMS350
Product Specifications
Mechanical Connectors; Wire Size Range: 350 kcmil-6 AWG ; Material Type: Aluminum ; Insulated: NonInsulated ; Contact Plating: Tin ; Rating: CSA Certified; RoHS EX Compliant; UL 467 ; Additional Information: Type: AMS; Dual Rated; Hex Size: 5/16 in; Screw Dia: 11/16 in; Number of Screws: 4; Screw Type: Allen; Temperature Rating: 194?F; Depth: 0.56 in; Minimum Voltage: 600; Rated: Al/Cu; Dimension: 4.34 in L x 1 in W x 1.09 in H
| Wire Size Range | 350 kcmil-6 AWG |
| Material Type | Aluminum |
| Insulated | NonInsulated |
| Contact Plating | Tin |
| Rating | CSA Certified; RoHS EX Compliant; UL 467 |
| Additional Information | Type: AMS; Dual Rated; Hex Size: 5/16 in; Screw Dia: 11/16 in; Number of Screws: 4; Screw Type: Allen; Temperature Rating: 194?F; Depth: 0.56 in; Minimum Voltage: 600; Rated: Al/Cu; Dimension: 4.34 in L x 1 in W x 1.09 in H |
