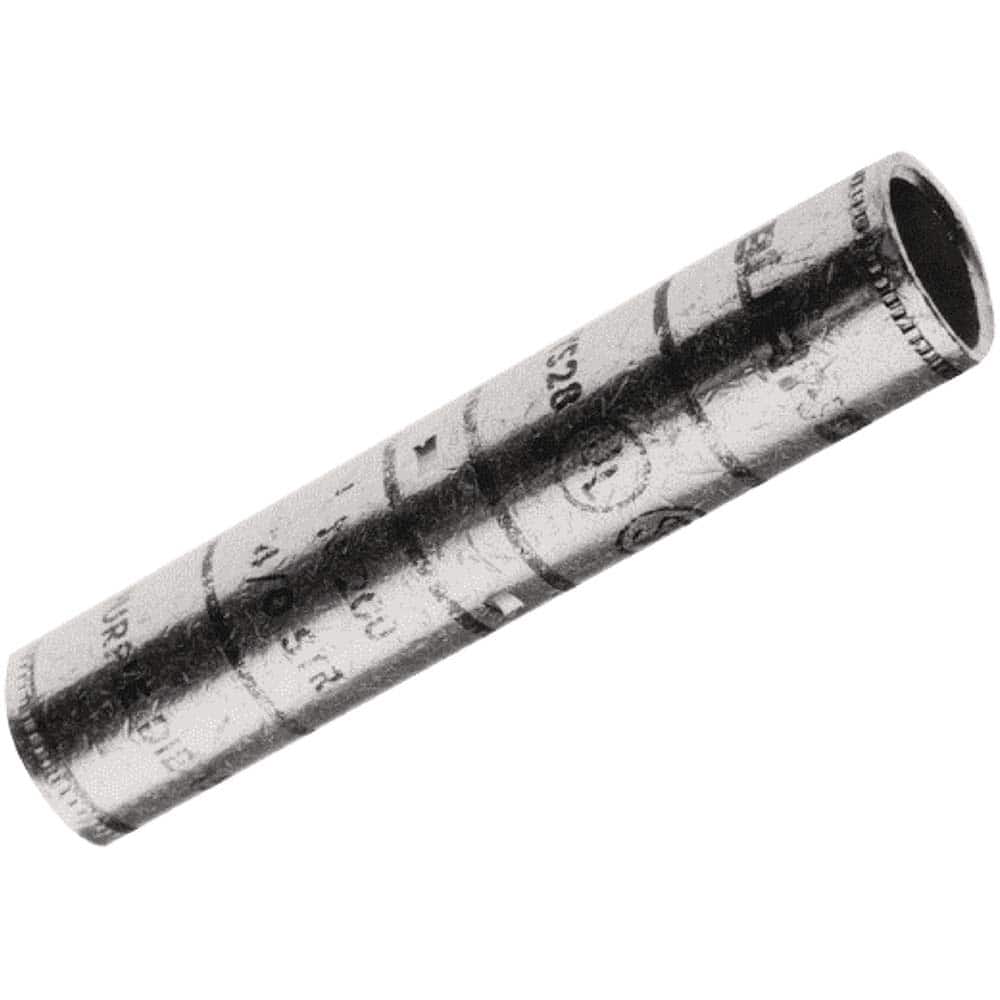

Burndy - Butt Splice Terminals; Insulation Type: NonInsulated ; Insulation Material: NonInsulated ; Connection Type: Compression ; Compatible Wire Size (kcmil): 500 ; Color: Brown ; Overall Length (mm): 124.714
Item #: 29225539
Brand: Burndy
Model #: YS34
Product Specifications
Butt Splice Terminals; Insulation Type: NonInsulated ; Insulation Material: NonInsulated ; Connection Type: Compression ; Compatible Wire Size (kcmil): 500 ; Color: Brown ; Overall Length (mm): 124.714
| Insulation Type | NonInsulated |
| Insulation Material | NonInsulated |
| Connection Type | Compression |
| Compatible Wire Size (kcmil) | 500 |
| Color | Brown |
| Overall Length (mm) | 124.714 |
| Overall Length (Inch) | 4.91 |
| Overall Length (Decimal Inch) | 4.91 |
| Overall Diameter (Inch) | 1.06 |
| Overall Diameter (Decimal Inch) | 1.06 |
| Contact Material | Copper |
| Contact Plating | Tin |
| Standards Met | CSA Certified; RoHS CM Compliant; UL 486A-486 |
| Additional Information | Sub Brand: HYLINK; Operating Voltage: 35000 V; Length: 4.91 in; Barrel Style: Chamfered; Barrel Type: Long; Strip Length: 2-1/4 in; Die Index: 20 or 299; Temperature Rating: 90?C |
