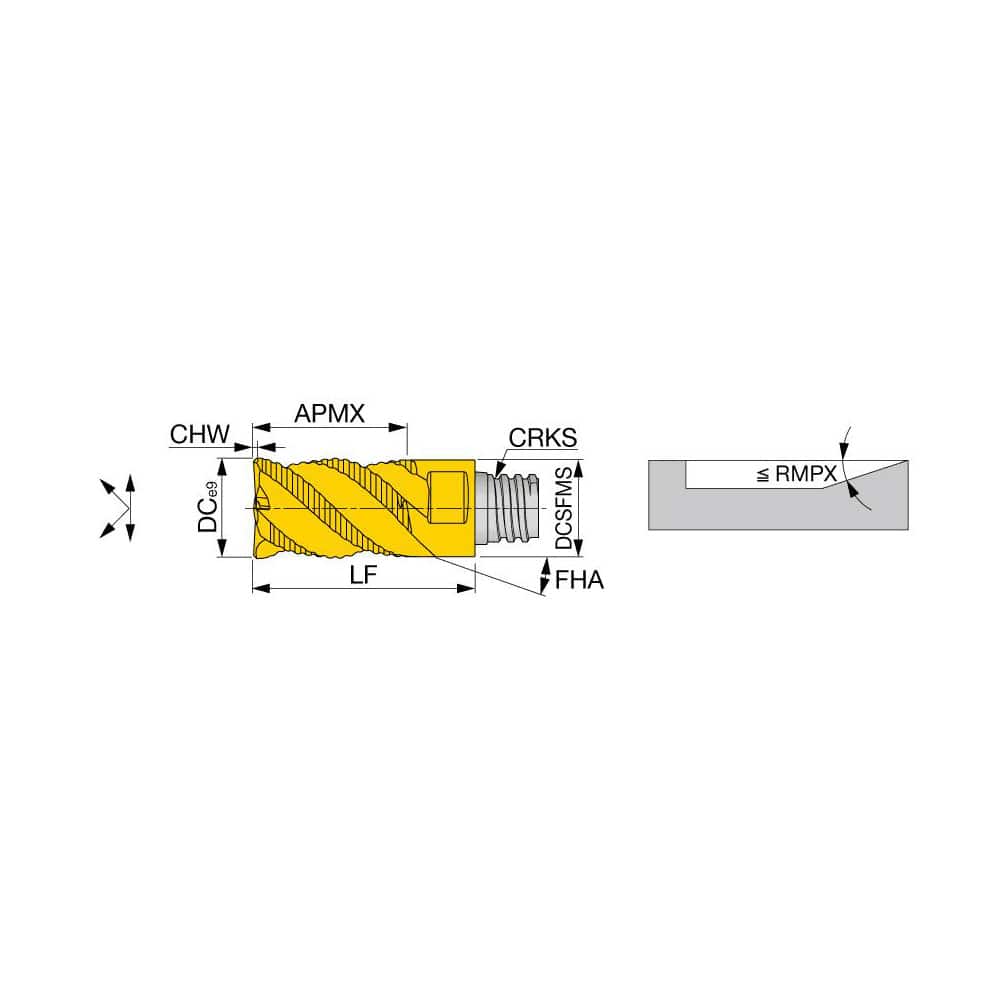

Corner Chamfer End Mill Head: 0.7874″ Dia, 45 °, 6 Flute S08, TiAlN Finish, Helical Flute, Series VED
Item #: 29162229
Brand: Tungaloy
Model #: 6848383
Product Specifications
| Mill Diameter (mm) | 20.00 |
| Chamfer Width (mm) | 0.40 |
| Mill Diameter (Decimal Inch) | 0.7874 |
| Chamfer Angle | 45 |
| Length of Cut (mm) | 30.00 |
| Connection Type | S08 |
| Overall Length (mm) | 41.00 |
| Centercutting | No |
| Flute Type | Helical |
| Series | VED |
| Helix Angle | 47 |
| Number Of Flutes | 6 |
| Coating/Finish | TiAlN |
