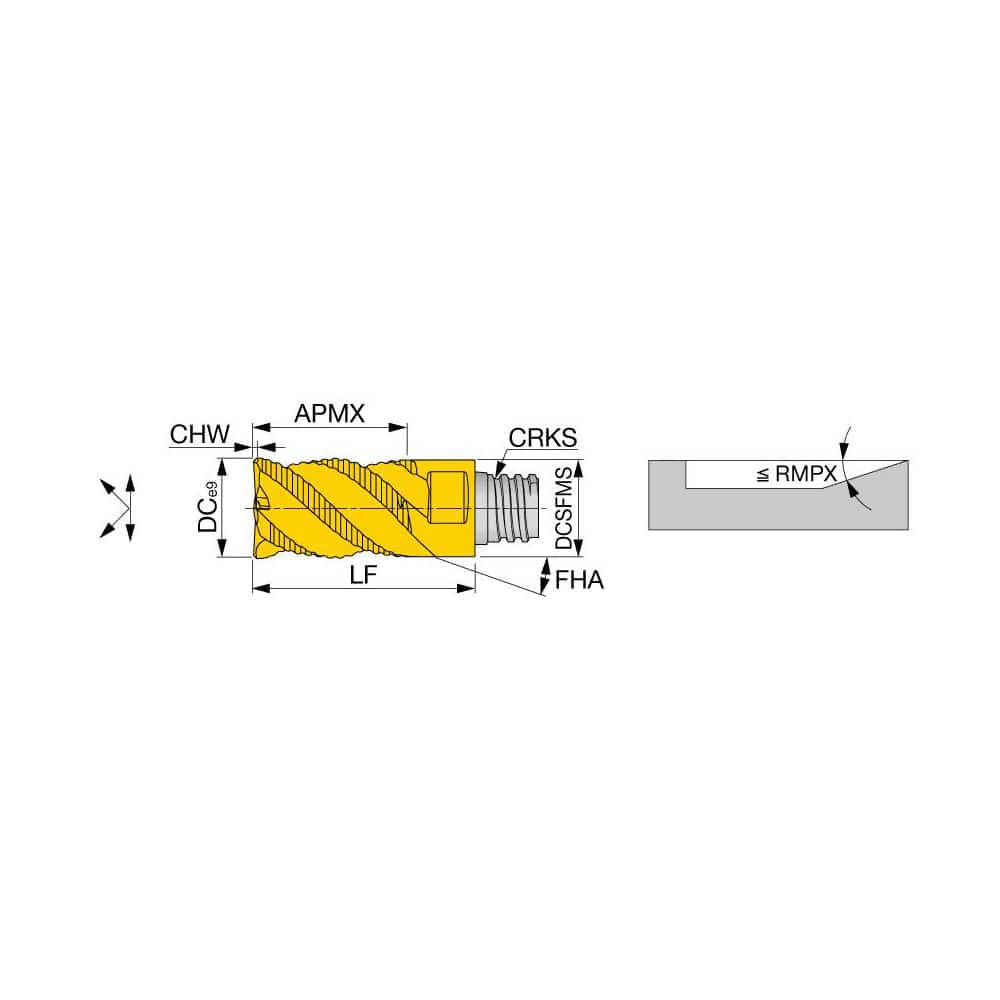

Corner Chamfer End Mill Head: 0.315″ Dia, 45 °, 4 Flute S06, TiAlN Finish, Helical Flute, Series VED
Item #: 29161437
Brand: Tungaloy
Model #: 6848346
Product Specifications
| Mill Diameter (mm) | 8.00 |
| Chamfer Width (mm) | 0.25 |
| Mill Diameter (Decimal Inch) | 0.3150 |
| Chamfer Angle | 45 |
| Length of Cut (mm) | 12.00 |
| Connection Type | S06 |
| Overall Length (mm) | 18.00 |
| Centercutting | No |
| Flute Type | Helical |
| Series | VED |
| Helix Angle | 47 |
| Number Of Flutes | 4 |
| Coating/Finish | TiAlN |
