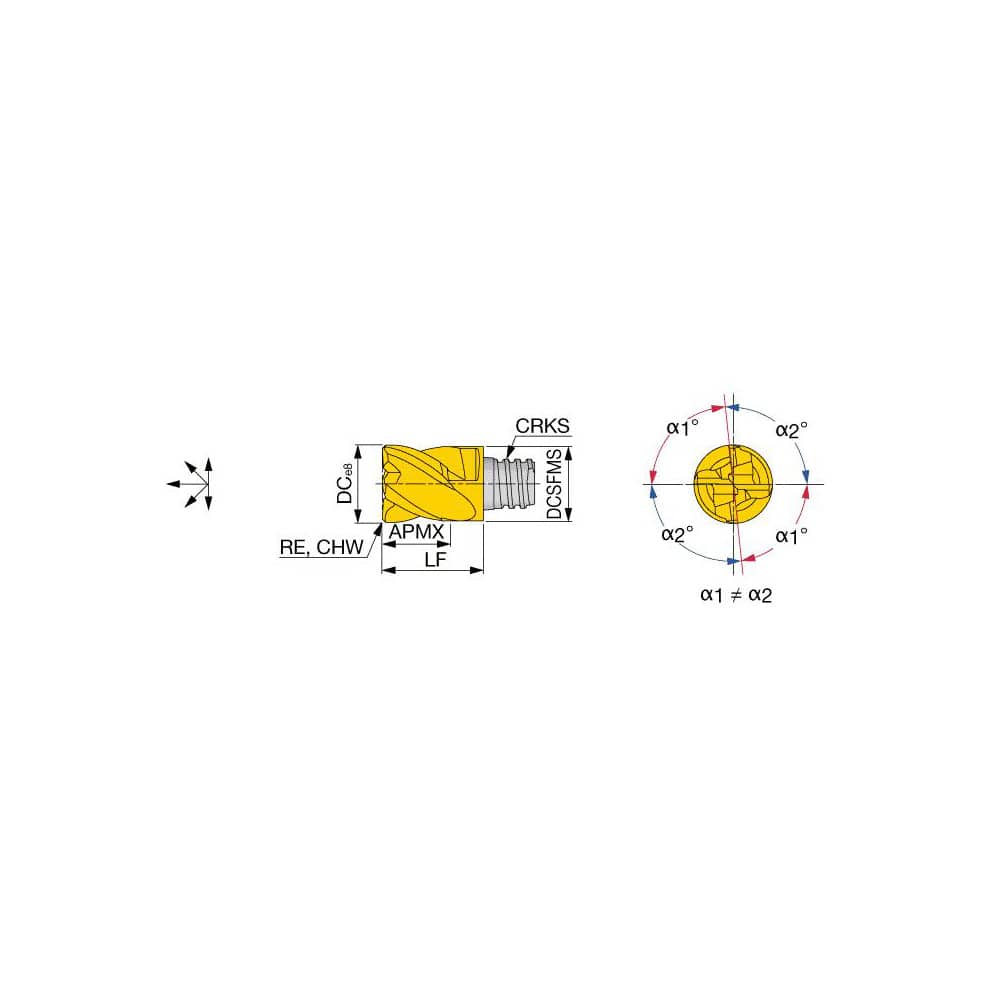

Corner Chamfer End Mill Head: 1″ Dia, 45 °, 0.024″ Width, 4 Flute S06, TiAlN Finish, Helical Flute, Series VEE
Item #: 29161312
Brand: Tungaloy
Model #: 6717395
Product Specifications
| Mill Diameter (Inch) | 1 |
| Chamfer Width (Decimal Inch) | 0.0240 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Chamfer Angle | 45 |
| Connection Type | S06 |
| Overall Length (Decimal Inch) | 1.4600 |
| Centercutting | Yes |
| Flute Type | Helical |
| Series | VEE |
| Helix Angle | 38 |
| Number Of Flutes | 4 |
| Coating/Finish | TiAlN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.8630 |
