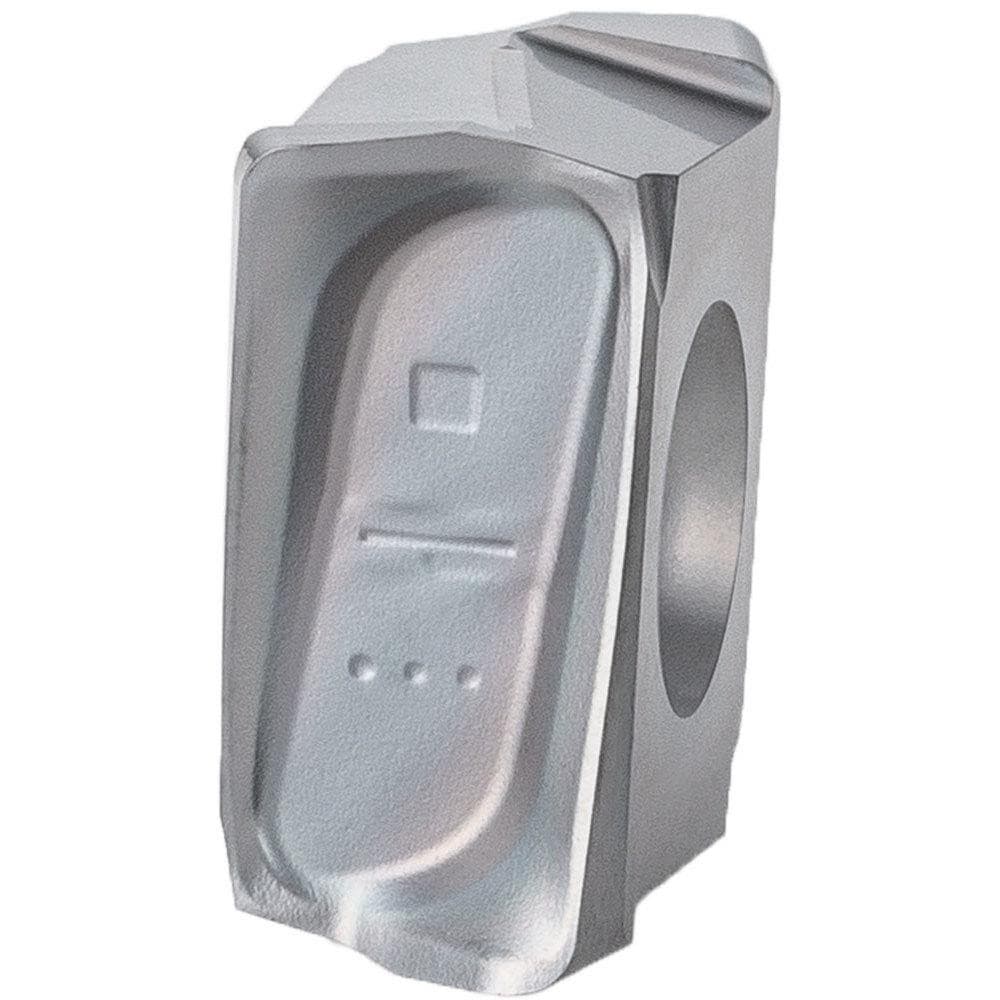

Milling Insert: LOGU090404ER-GM PR1835, Carbide
Item #: 87591541
Brand: Kyocera
Model #: TLU00001
Product Specifications
| Insert Style | LOGU |
| Insert Size | 0904 |
| Insert Material | Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | PR1835 |
| Corner Radius (Decimal Inch) | 0.0158 |
| Corner Radius (mm) | 0.40 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2665 |
| Thickness (mm) | 6.7700 |
| Coating/Finish | MEGACOAT NANO EX |
| Insert Hand | Right Hand |
| Series | MA90 Tangential Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.3300 |
| Hole Diameter (Decimal Inch) | 0.1311 |
| Rake | Positive |
| Primary Workpiece Material | Austenitic Stainless Steel; Titanium Alloy; Precipitation Hardened Stainless Steel |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Mold Steel; Martensitic Stainless Steel; Alloy Steel; Carbon Steel |
| Secondary Workpiece Material Code | P; M |
| Ansi Code | LOGU090404ERGMPR1835 |
| Iso Code | LOGU090404ER-GM |
| Manufacturers Catalog Number | LOGU090404ERGMPR1835 |
| Chip Breaker | ER-GM |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Length (mm) | 8.89 |
| Width (Decimal Inch - 4 Decimals) | 0.1693 |
| Width (mm - 2 Decimals) | 4.30 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3500 |
| Country of Origin | Japan |
