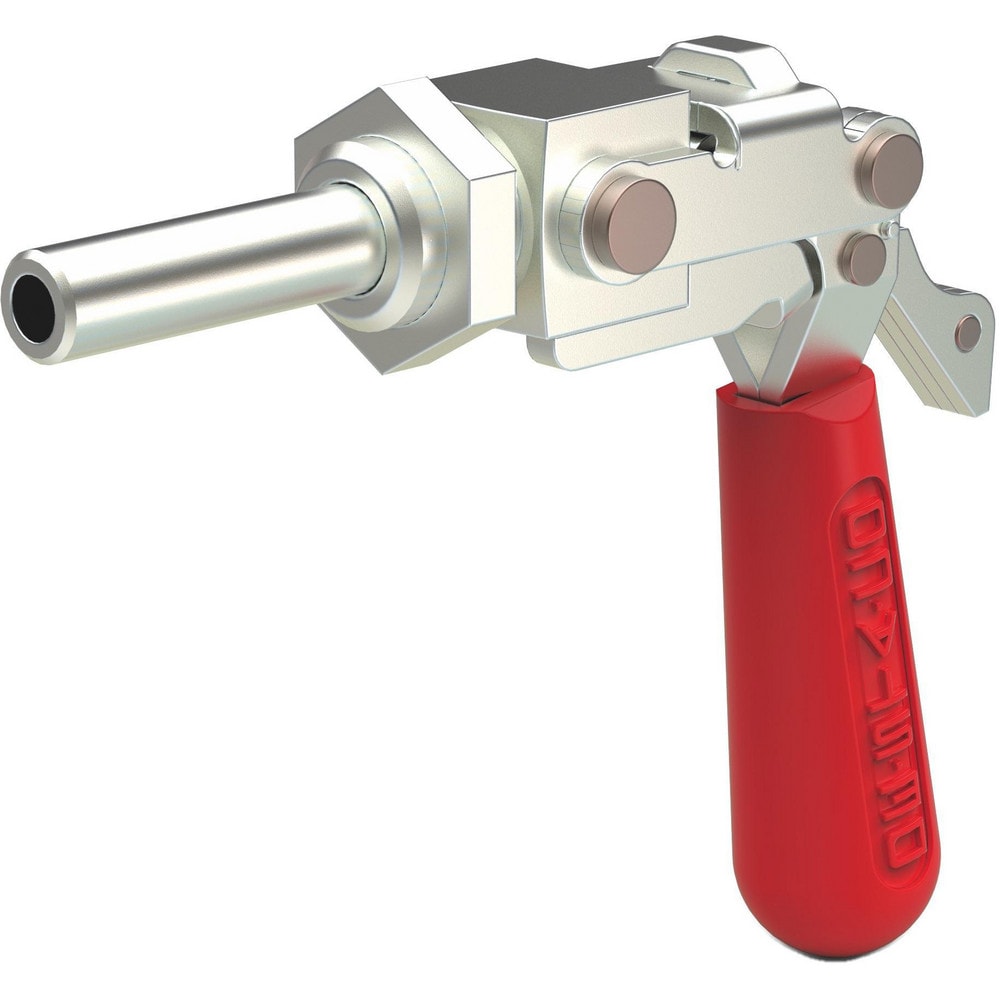

Standard Straight-Line Action Clamps; Load Capacity (N): 1780.00; Load Capacity: 1780; Plunger Travel (Decimal Inch): 1.5000; Plunger Travel: 1.5 in; Plunger Shape: Round
Item #: 67522664
Brand: De-Sta-Co
Model #: 604-RSS
Product Specifications
| Load Capacity (N) | 1780.00 |
| Load Capacity | 1780 |
| Plunger Travel (Decimal Inch) | 1.5000 |
| Plunger Travel | 1.5 in |
| Plunger Shape | Round |
| Plunger Thread Size | 5/16-18 |
| Plunger Centerline Height | 1.5 in |
| Plunger Diameter (Decimal Inch) | 0.44 |
| Handle Style | Straight |
| Clamp Material | Stainless Steel |
| Material | Stainless Steel |
| Overall Length (Decimal Inch) | 4.9500 |
| Overall Height (Decimal Inch) | 4.1600 |
| Handle Color | Red |
| Maximum Mechanical Advantage | 45:1/26:1 |
| Includes | Mounting Nut |
| UNSPSC Code | 27112100 |
| Clamp Type | Straight Line Action |
| Holding Capacity (N) | 1780.00 |
| Handle Movement (Degrees) | 360 |
| Handle Orientation | Multi-Position Rotatable |
| Holding Capacity (Lb.) | 400 |
| Load Capacity (N) | 1780.00 |
| Load Capacity | 1780 |
| Plunger Travel (Decimal Inch) | 1.5000 |
| Plunger Travel | 1.5 in |
| Plunger Shape | Round |
| Plunger Thread Size | 5/16-18 |
| Plunger Centerline Height | 1.5 in |
| Plunger Diameter (Decimal Inch) | 0.44 |
| Handle Style | Straight |
| Clamp Material | Stainless Steel |
| Material | Stainless Steel |
| Overall Length (Decimal Inch) | 4.9500 |
| Overall Height (Decimal Inch) | 4.1600 |
| Handle Color | Red |
| Maximum Mechanical Advantage | 45:1/26:1 |
| Includes | Mounting Nut |
| UNSPSC Code | 27112100 |
| Clamp Type | Straight Line Action |
| Holding Capacity (N) | 1780.00 |
| Handle Movement (Degrees) | 360 |
| Handle Orientation | Multi-Position Rotatable |
| Holding Capacity (Lb.) | 400 |
| MSC Part # | 67522664 |
| Mfr Part # | 604-RSS |
| Country of Origin Country of Origin is subject to change | Thailand |
