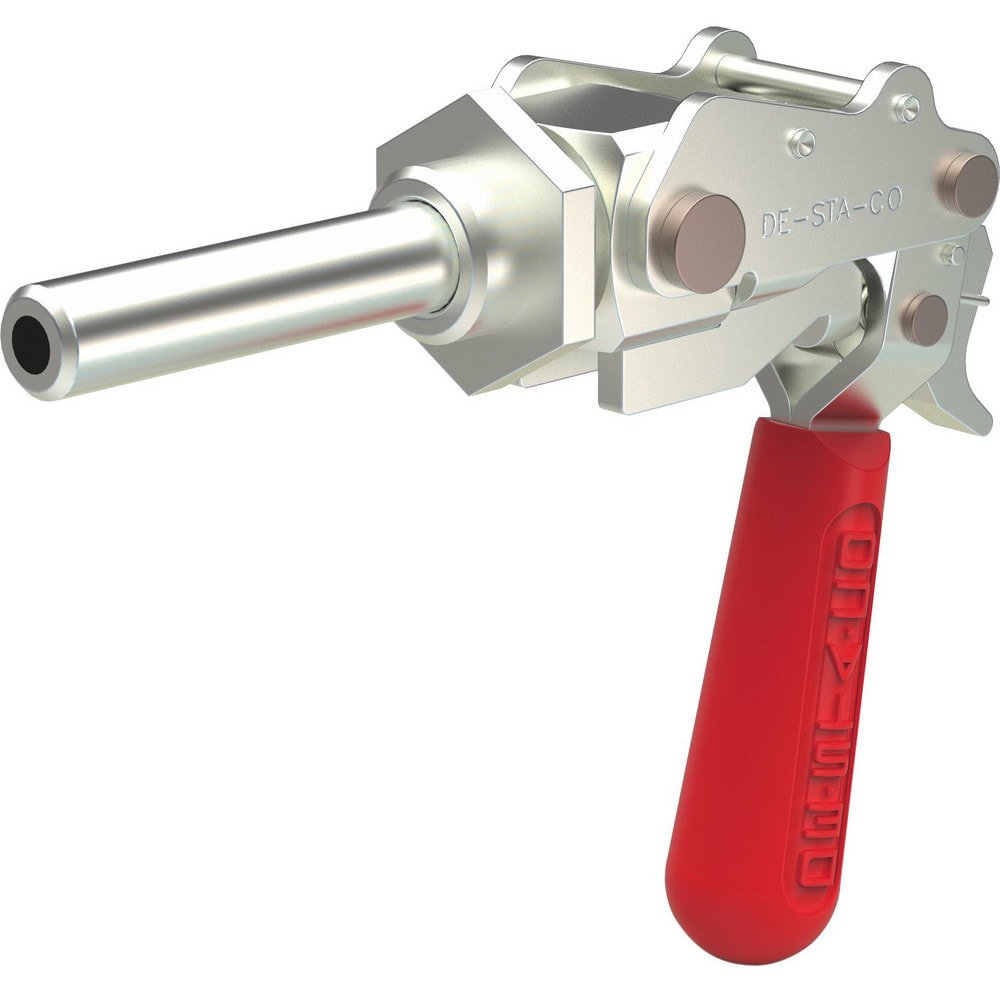

Standard Straight-Line Action Clamps; Load Capacity (N): 3110.00; Load Capacity: 3110; Plunger Travel (Decimal Inch): 2.6300; Plunger Travel: 2.63 in; Plunger Shape: Round
Item #: 67522656
Brand: De-Sta-Co
Model #: 624-MMRSS
Product Specifications
| Load Capacity (N) | 3110.00 |
| Load Capacity | 3110 |
| Plunger Travel (Decimal Inch) | 2.6300 |
| Plunger Travel | 2.63 in |
| Plunger Shape | Round |
| Plunger Thread Size | M10 |
| Plunger Centerline Height | 0.83 in |
| Plunger Diameter (Decimal Inch) | 0.62 |
| Handle Style | Straight |
| Clamp Material | Stainless Steel |
| Material | Stainless Steel |
| Overall Length (Decimal Inch) | 6.6800 |
| Overall Height (Decimal Inch) | 5.6000 |
| Handle Color | Red |
| Maximum Mechanical Advantage | 49:1/21:1 |
| Includes | Mounting Nut |
| UNSPSC Code | 27112100 |
| Clamp Type | Straight Line Action |
| Holding Capacity (N) | 3110.00 |
| Handle Movement (Degrees) | 360 |
| Handle Orientation | Multi-Position Rotatable |
| Holding Capacity (Lb.) | 700 |
| Load Capacity (N) | 3110.00 |
| Load Capacity | 3110 |
| Plunger Travel (Decimal Inch) | 2.6300 |
| Plunger Travel | 2.63 in |
| Plunger Shape | Round |
| Plunger Thread Size | M10 |
| Plunger Centerline Height | 0.83 in |
| Plunger Diameter (Decimal Inch) | 0.62 |
| Handle Style | Straight |
| Clamp Material | Stainless Steel |
| Material | Stainless Steel |
| Overall Length (Decimal Inch) | 6.6800 |
| Overall Height (Decimal Inch) | 5.6000 |
| Handle Color | Red |
| Maximum Mechanical Advantage | 49:1/21:1 |
| Includes | Mounting Nut |
| UNSPSC Code | 27112100 |
| Clamp Type | Straight Line Action |
| Holding Capacity (N) | 3110.00 |
| Handle Movement (Degrees) | 360 |
| Handle Orientation | Multi-Position Rotatable |
| Holding Capacity (Lb.) | 700 |
| MSC Part # | 67522656 |
| Mfr Part # | 624-MMRSS |
| Country of Origin Country of Origin is subject to change | Thailand |
