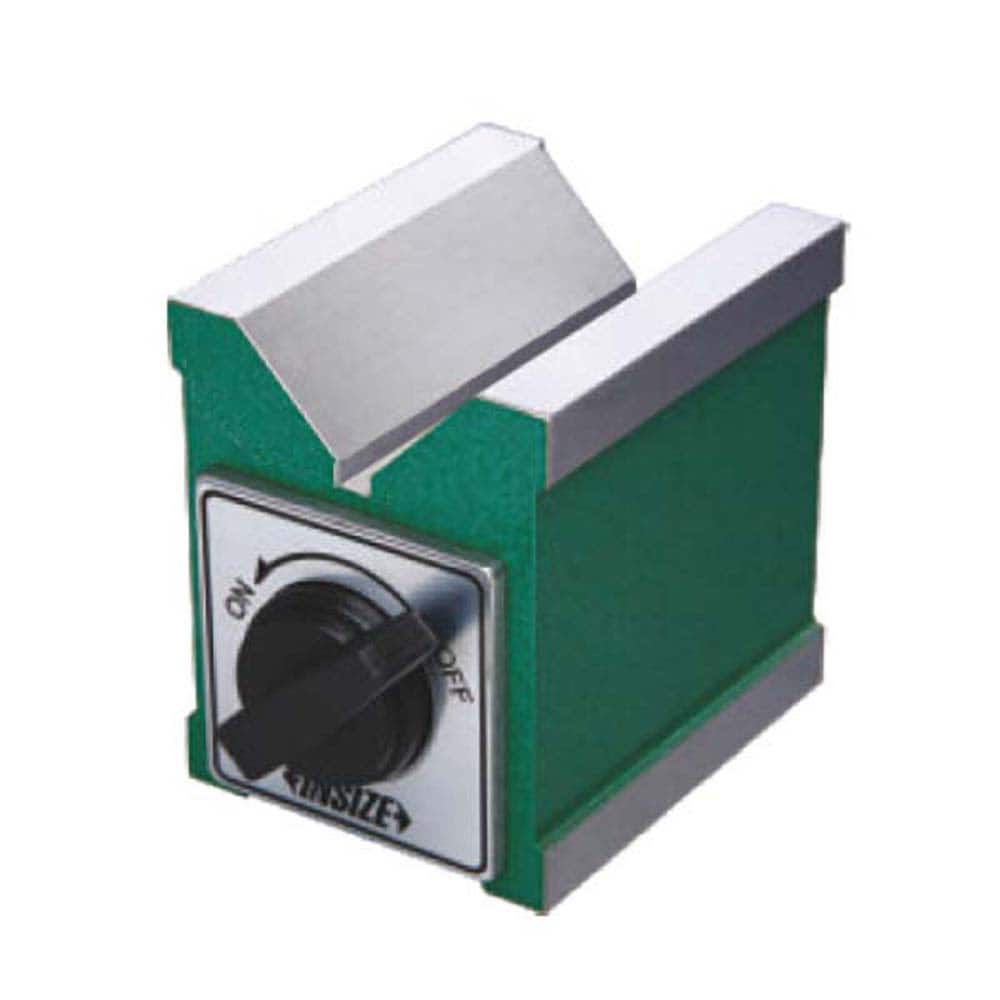

Insize USA LLC - V-Blocks; Type: V-Block ; Sold As: Individual ; Overall Width (Decimal Inch): 2.4000 ; V Angle: 90.00 ; Minimum Capacity of V (Decimal Inch): 0.2362 ; Maximum Capacity of V (Decimal Inch): 1.7322
Item #: 28730968
Brand: Insize USA LLC
Model #: 6890-702
Product Specifications
V-Blocks; Type: V-Block ; Sold As: Individual ; Overall Width (Decimal Inch): 2.4000 ; V Angle: 90.00 ; Minimum Capacity of V (Decimal Inch): 0.2362 ; Maximum Capacity of V (Decimal Inch): 1.7322
| Type | V-Block |
| Sold As | Individual |
| Overall Width (Decimal Inch) | 2.4000 |
| V Angle | 90.00 |
| Minimum Capacity of V (Decimal Inch) | 0.2362 |
| Maximum Capacity of V (Decimal Inch) | 1.7322 |
| Material | Steel |
| Squareness Per 1 Inch (Decimal Inch) | 0.0004 |
| Parallelism (Decimal Inch) | 0.0004 |
| Accuracy (Inch) | 0.0004 |
| Accuracy (Decimal Inch) | 0.0004 |
| V Accuracy (Decimal Inch) | 0.0004 |
| Features | Supplied in Single Piece; Not Hardened; Not Suitable For Steel Or Iron Surface |
| Magnetic | Yes |
| Trade Name | Insize USA LLC |
| Load Capacity (Lb.) | 123.000 |
| Includes | Case |
