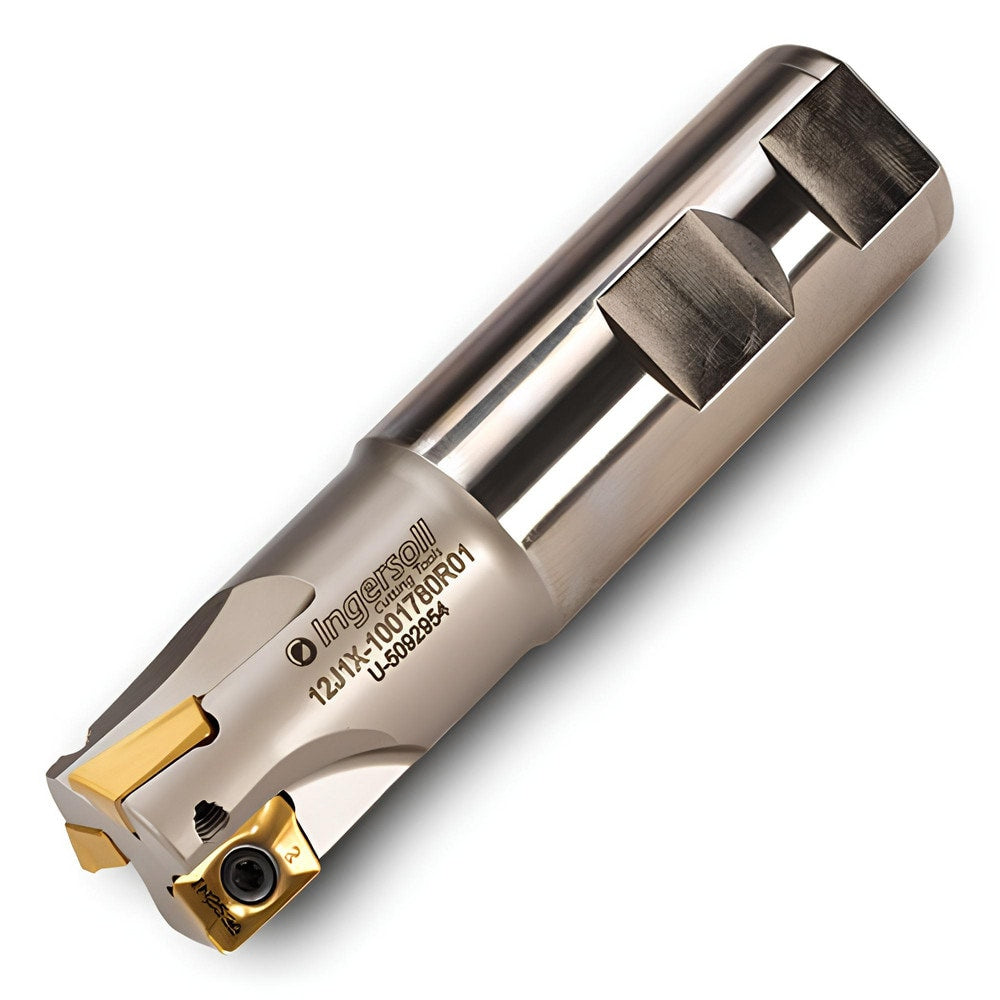

Brand: Ingersoll Cutting Tools / Part #: 3024804
Item #: 59408534
Brand: Ingersoll Cutting Tools
Model #: 3024804
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.7250 |
| Maximum Cutting Diameter (Decimal Inch) | 0.7250 |
| Maximum Cutting Diameter (mm) | 18.42 |
| Maximum Depth of Cut (mm) | 12.45 |
| Maximum Depth of Cut (Decimal Inch) | 0.4900 |
| Cutter Style | 12J1X |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Maximum Ramping Angle | 7 ? |
| Insert Holding Method | Screw |
| Overall Length (mm) | 101.6000 |
| Overall Length (Decimal Inch) | 4.0000 |
| Tool Material | Steel |
| Series | 12J1X |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.2000 |
| Shank Length (mm) | 55.880 |
| Head Length (Decimal Inch) | 1.8000 |
| Head Length (mm) | 45.72 |
| Tool Application | Facing; Pocketing; Shouldering; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Shoulder Square End Mill |
| Rake | Positive |
| Complete Insert Compatibility | ZOMT1204..; AOxT1204.. |
| Insert Compatibility | ZOMT1204..; AOxT1204.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| Manufacturers Catalog Number | 12J1X-0702084R01 |
| Usable Length (mm) | 45.720 |
| Number Of Flutes | 2 |
| Usable Length (Decimal Inch) | 1.8000 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
