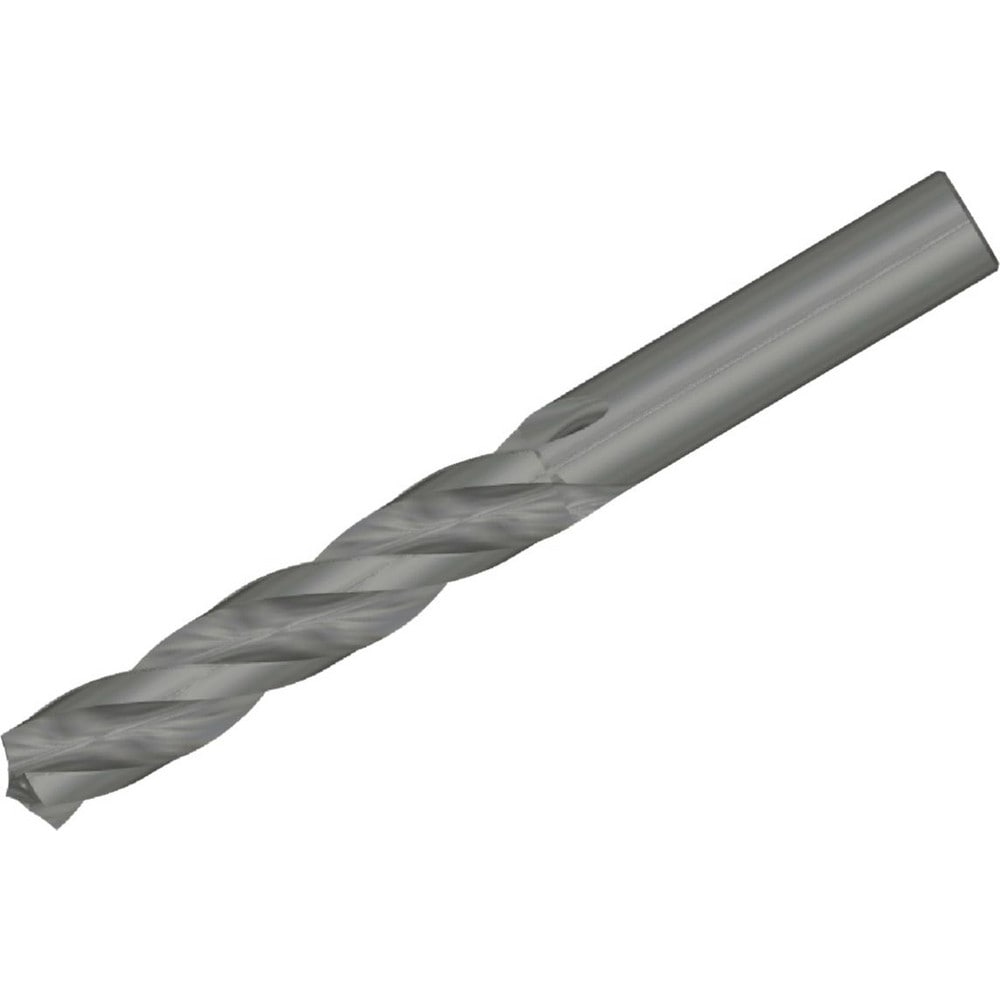

Brand: Widia / Part #: 6197137
Item #: 96807482
Brand: Widia
Model #: 6197137
Product Specifications
| Drill Bit Size (mm) | 16.00 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Uncoated |
| Drill Point Angle | 130 |
| Spiral Type | Right Hand |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight |
| Number Of Flutes | 3 |
| Overall Length (mm) | 115.0000 |
| Shank Diameter (mm) | 16.0000 |
| Series | TDT751A |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (mm) | 45.00 |
| Shank Length (mm) | 48.000 |
| Drill Point Length (mm) | 4.00 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Flute Length (mm) | 65.00 |
| Material Grade | WN15HD |
