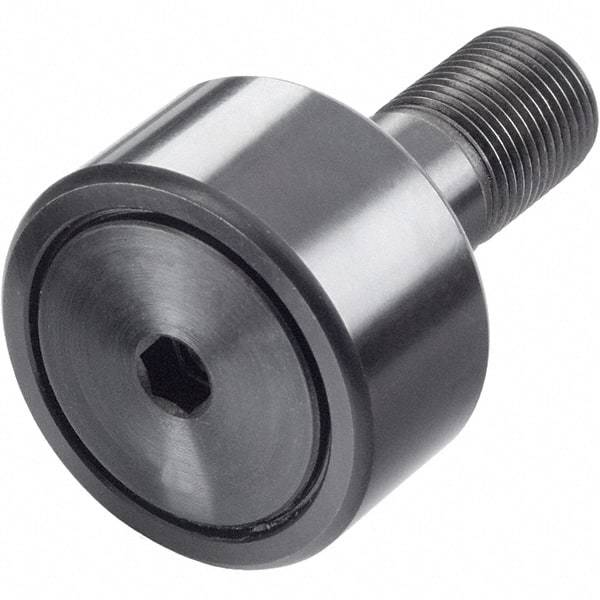

Koyo - Cam Followers & Idler Rollers Type: Sealed Stud Cam Follower with Hex Roller Diameter (Decimal Inch): 1.0000
Item #: 28561454
Brand: Koyo
Model #: CF 1SB
Exact Tooling IR#: 04
Product Specifications
Cam Followers & Idler Rollers; Type: Sealed Stud Cam Follower with Hex ; Roller Diameter (Decimal Inch): 1.0000 ; Roller Width (Decimal Inch): 0.6250 ; Stud Diameter (Decimal Inch): 0.4375 ; Dynamic Load Capacity (Lb.): 2,225 ; Static Load Capacity: 3,060.00 (Pounds)
| Type | Sealed Stud Cam Follower with Hex |
| Roller Diameter (Decimal Inch) | 1.0000 |
| Roller Width (Decimal Inch) | 0.6250 |
| Stud Diameter (Decimal Inch) | 0.4375 |
| Dynamic Load Capacity (Lb.) | 2225 |
| Static Load Capacity (Pounds) | 3060.00 |
| Length (Decimal Inch) | 1.625 |
| Thread Size | 7/16-20 |
| Material | Black Oxide |
| Stud Length (Inch) | 1 |
| Thread Length (Inch) | 1/2 |
| Roller Type | Full Complement |
