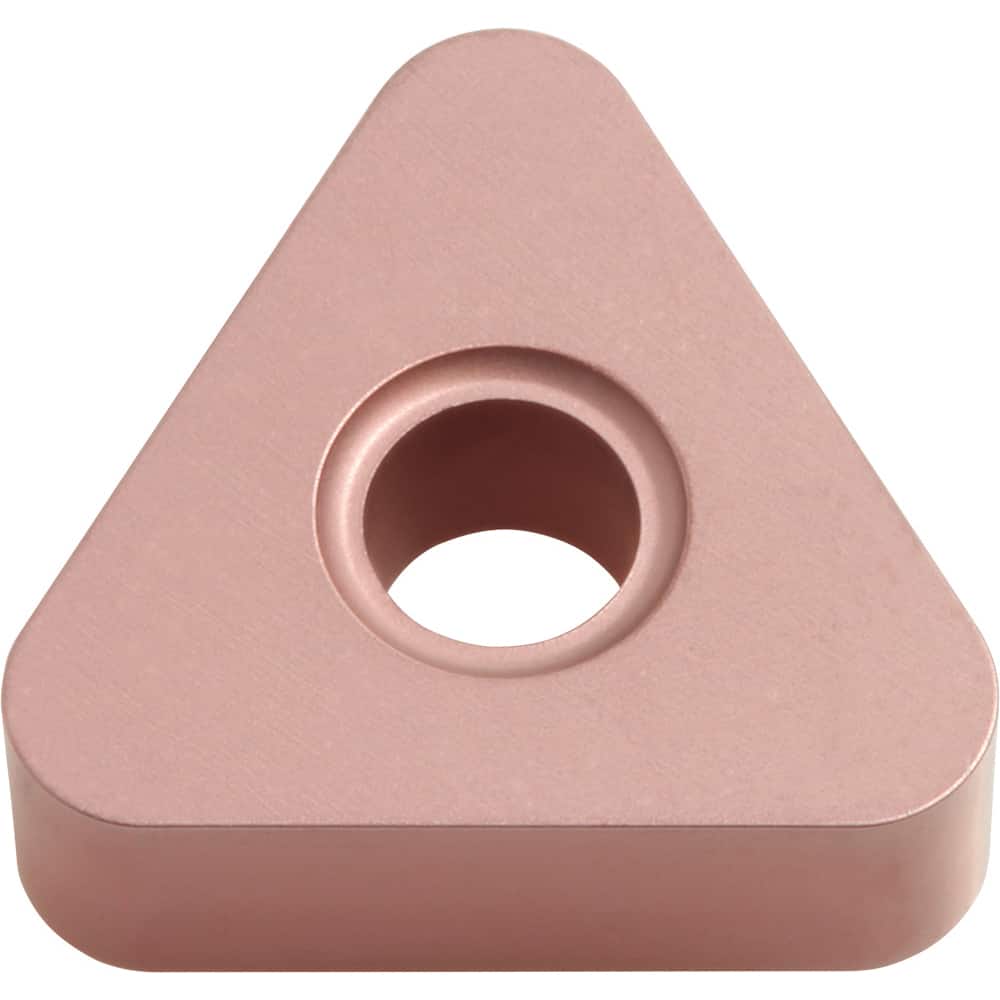

TNMA160420 CA320 Carbide Turning Insert TiCl2O3/Ti Finish, Neutral, 3/8″ Inscribed Circle, 0.0787″ Corner Radius, 0.1874″ Thick, 60° Triangle, Series CA3
Item #: 28469161
Brand: Kyocera
Model #: TME05934
Product Specifications
| Insert Style | TNMA |
| Insert Shape Code | T |
| Insert Size Code | 335 |
| Insert Shape | Triangle |
| Clearance Code | N |
| Tolerance Code | M |
| Manufacturer Grade | CA320 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | CA3 |
| Coating Process | CVD |
| Rake | Negative |
| Primary Workpiece Material | K |
| Secondary Workpiece Material | K |
| Manufacturers Catalog Number | TNMA335CA320 |
| Chip Breaker | A |
| Multi-Use Tool | Yes |
| Coating/Finish | TiCl2O3; Ti |
| Multi-Use Application | External Turning; Chamfering; Facing; Copying; Boring |
